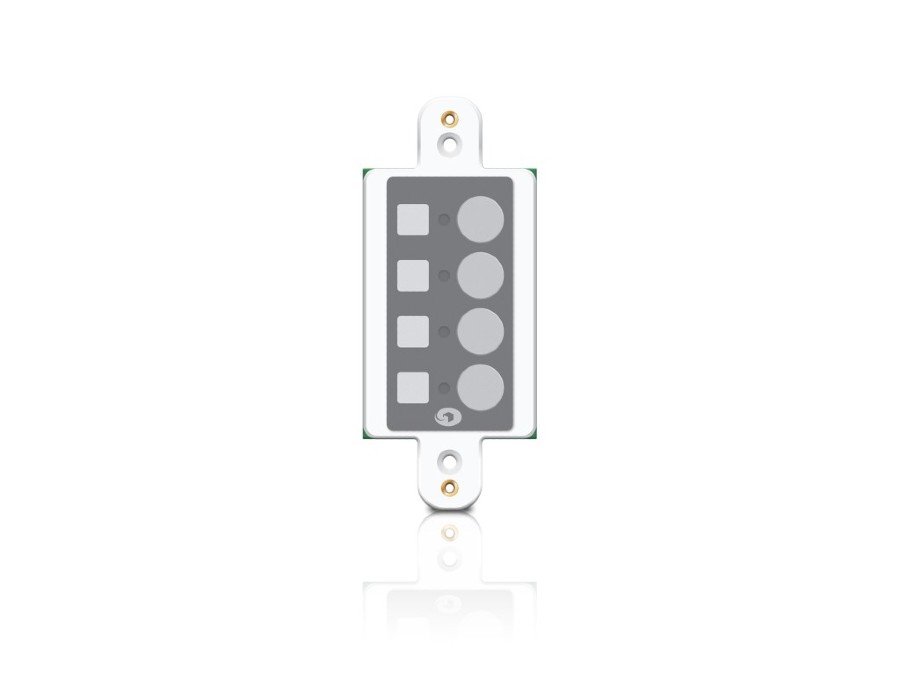

Symetrix ARC-EX4e

Symetrix ARC-EX4e

The ARC-EX4e is identical in function to the ARC-SW4e and provides a low cost method to expand the capabilities of either an ARC-SW4e or an ARC-K1e. Up to four ARC-EX4e’s may be combined with an ARC-K1e and up to three ARC- EX4e’s may be combined with an ARC- SW4e. The ARC-EX4e cannot be used standalone nor can it be combined with an ARC-2e. The ARC-EX4e accommodates Decora® faceplates (sold separately).

Architect and Engineer Specifications: Symetrix Wall Panels.

The series of wall panels shall be designated in two groups – Adaptive Remote Controls (ARC) and standard Remote Controls (RCs).

ARCs may be divided by functionality into the Menu and Modular ARCs. The Menu ARC-3 shall include one 256×64 pixel resolution white on black OLED backlit display and three capacitive touch areas for menu selection and value increment/decrement. The Menu ARC-3 shall mount into a single gang electrical box (US/UK/EU) or surface mount with the included enclosure. Power and control shall be connected via two RJ45 connectors. The Menu ARC-2e shall include one 8-character backlit alpha-numeric display, one momentary button for menu selection, and two momentary buttons for value increment/decrement. The Menu ARC-2e shall mount in a standard U.S. single-gang box. Power and control shall be connected via two RJ45 connectors.

• User Control of Symetrix DSP Systems
• Flexible and Extensible
• Easy to Install Using CAT5/6 Cabling
• Easy to Program Using Composer
• Low cost means to expand the capabilities of ARC-K1e and ARC-SW4e.
• Identical in function to ARC-SW4e.
• Up to 4 ARC-EX4e’s may be combined with ARC-K1e and up to 3 may be combined with ARC-SW4e.
• Accommodates Decora faceplates (not provided).
• Mounts in North American electrical boxes.
