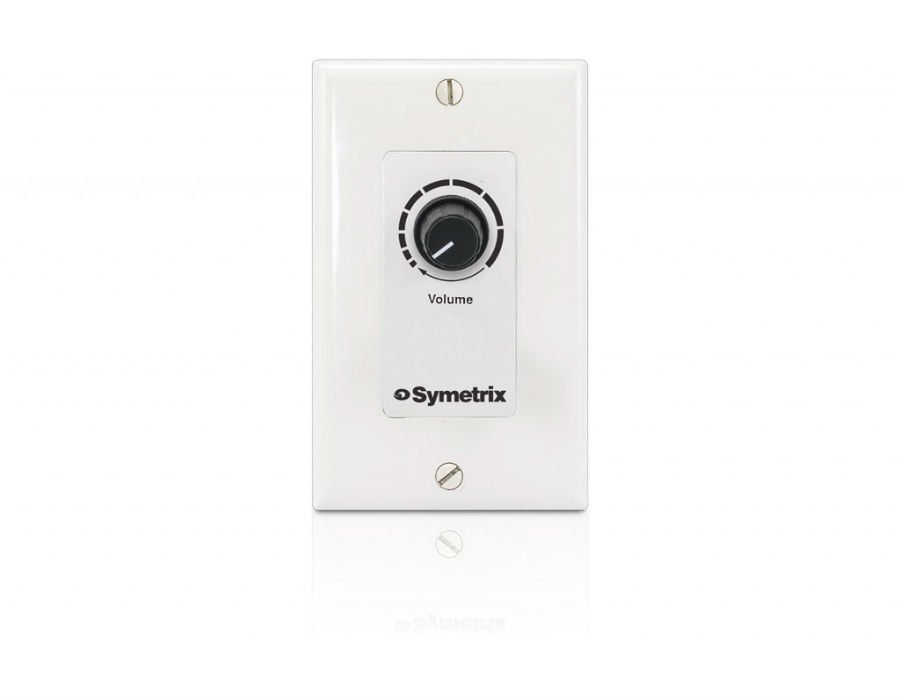

Symetrix RC-3

Symetrix RC-3

The RC-3 is a basic wall-panel analog remote control. Many systems require only a simple and cost-effective single point of control. For these situations, with minimal programming, the RC-3 is connected Symetrix DSP external control inputs to provide volume control or source or preset selection. Because it’s analog, the RC-3 lacks the sophisticated network intelligence of the ARC wall-panels, yet it is well suited to basic single point of control applications.

Architect and Engineer Specifications: Symetrix Wall Panels.

The series of wall panels shall be designated in two groups – Adaptive Remote Controls (ARC) and standard Remote Controls (RCs).

ARCs may be divided by functionality into the Menu and Modular ARCs. The Menu ARC-3 shall include one 256×64 pixel resolution white on black OLED backlit display and three capacitive touch areas for menu selection and value increment/decrement. The Menu ARC-3 shall mount into a single gang electrical box (US/UK/EU) or surface mount with the included enclosure. Power and control shall be connected via two RJ45 connectors. The Menu ARC-2e shall include one 8-character backlit alpha-numeric display, one momentary button for menu selection, and two momentary buttons for value increment/decrement.

• User Control of Symetrix DSP Systems
• Flexible and Extensible
• Easy to Install Using CAT5/6 Cabling
• Easy to Program Using Composer
• A basic potentiometer-based analog remote control.
• Interfaces with external control inputs to provide volume, source, or preset selection.
• Easy to program.
• Well suited for single point of control applications.
