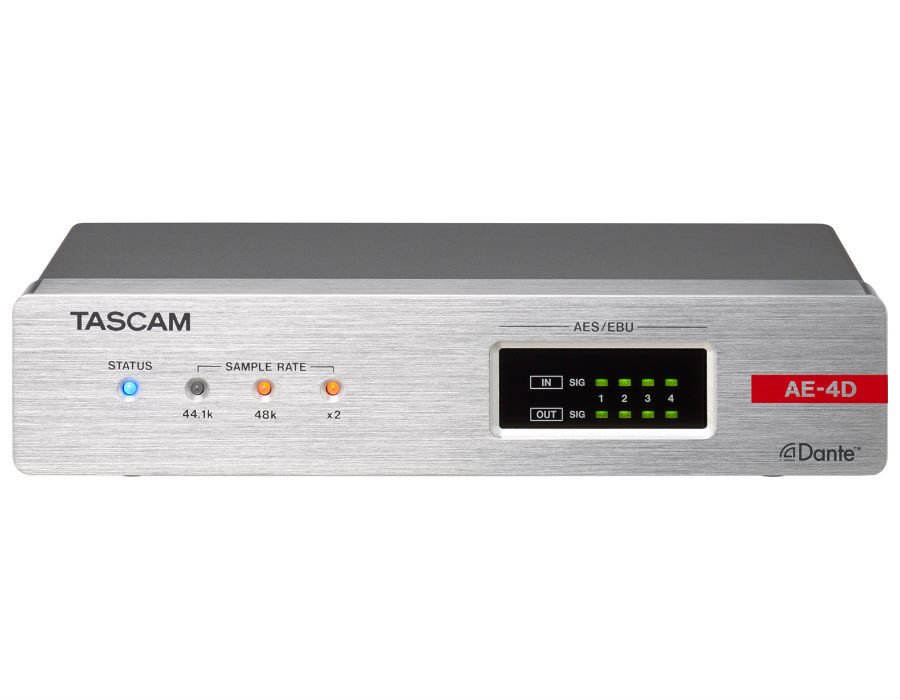

Tascam AE-4D

Tascam AE-4D

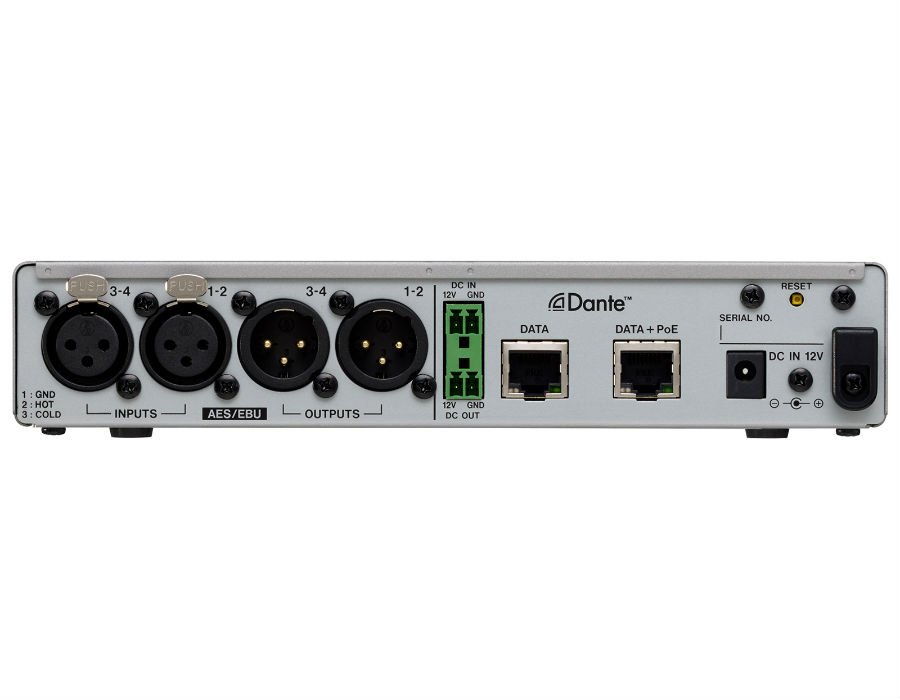

The AE-4D is a compact converter that mutually converts AES/EBU signals and 4-channel Dante signals. With half the size of a standard 1U rack, the AE-4D is suitable for different Dante systems as an exquisite AES/EBU input/output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. AE-4D supports up to 96kHz/24bit and uses XLR connectors for AES/EBU output.

The AE-4D is a simple converter that converts 4-channel AES/EBU input signals into 4-channel Dante output signals, or 4-channel Dante input signals into 4-channel AES/EBU input signals.

For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.

The Dante Compact Processor Series has a line-up of models with different input/output specifications:

• MM-4D/IN, 4-channel mic/line input
• ML-4D/OUT, 4-channel line output
• MM-2D, 2-channel mic/line input/output
• AE-4D, AES/EBU 4-channel input/output
