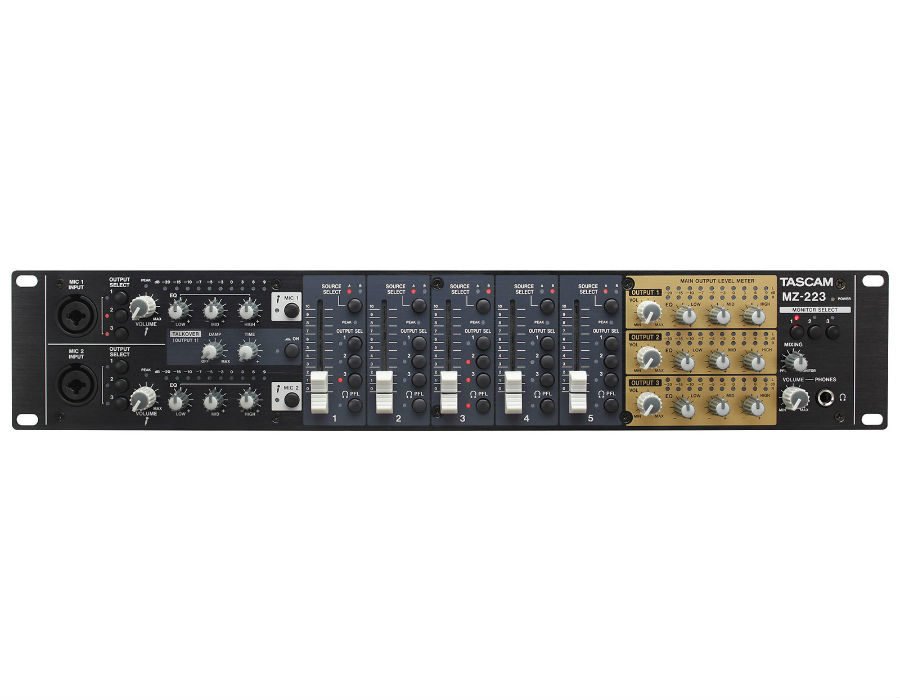

A powerful multi-channel, multi-zone mixer housed in a compact 2U desgn, The TASCAM MZ-223 offers versatile multi-zone audio routing, mixing, and segregation of several audio sources simultaneously. Source content can include music, spoken word (microphone), phonograph, and more and are easily controlled via familiar sliders and assignment controls on the front panel. Designed for easy integration in virtually any system, the TASCAM MZ-223 is ideal for small format install applications such as moderate sized hotels, restaurants, meeting rooms, schools, or any situation that demands independently routed audio.

MIC 1–2 INPUT (Balanced)

Connectors XLR 3-31 / 1/4″ (6.3mm) TRS combo jack × 2
(1: GND, 2: HOT, 3: COLD) / (Tip: HOT, Ring: COLD, Sleeve: GND)

VOLUME knob at MAX –65dBu

VOLUME knob at MIN –30dBu

Input impedance 33kΩ

LINE INPUTS (Umbalanced)

Connectors  RCA Pin jack × 10 pairs

Nominal input level –10dBV

Maximum input level 10dBV

Input impedance 22kΩ

MAIN OUTPUTS (Unbalanced)

Connectors RCA Pin jack × 3 pairs

Rated output level –10dBV

Maximum output level 6dBV

Output impedance 200Ω

MAIN OUTPUTS (Balanced)

Connectors XLR 3-31 × 3 pairs (1: GND, 2: HOT, 3: COLD)

Rated output level 4dBu

Maximum output level 24dBu

Output impedance 200Ω

Power

Input voltage AC 100 – 240V, 50/60Hz

Output voltage DC 15V

Output current 2.4A
