TOA AT-100EMG

ATENUADOR DE CONTROL DE VOLUMEN

PRESENTACIÓN: PIEZA

Categoría: Etiqueta:


Descripción

TOA AT-100EMG

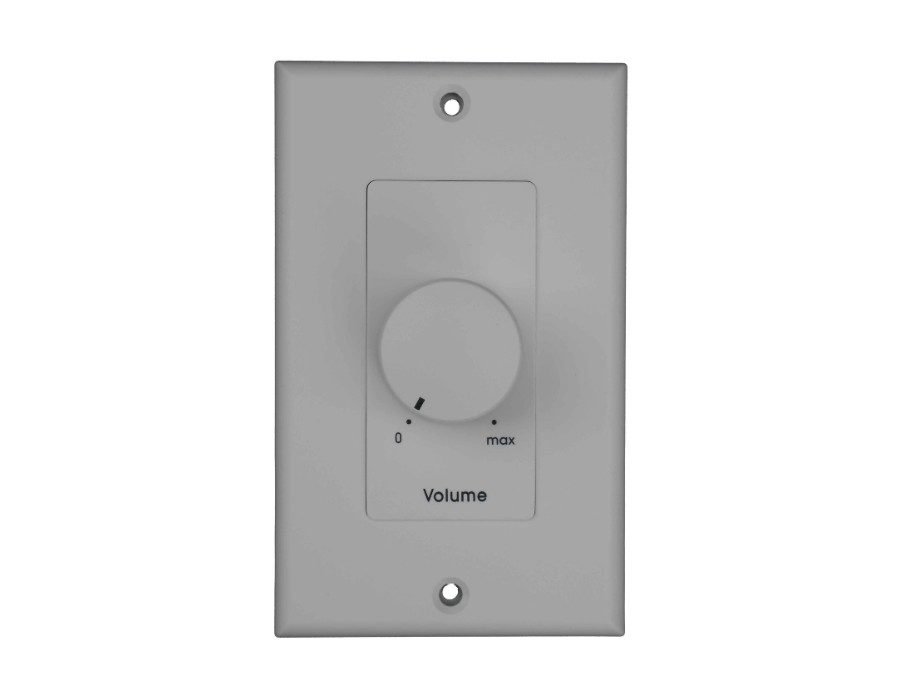

AT-100EMG volume control attenuator provides precise level adjustment of single or multiple speaker lines. Available in 100W with a Decora-style wall plate. AT-100EMG is equipped 3 with a 24 VDC @ 15mA relay for applications that require emergency and paging signals to bypass/override the attenuator.

  • Input Capacity: 100W
  • Attenuation: 13 steps (0dB, -3dB, -6dB, -9dB, -12dB, -15dB, -18dB, -21dB, -24dB, -27dB, -30dB, -33dB, OFF)
  • Wire Capacity: 14 guage
  • Priority Relay: 24VDC@15mA
  • Finish: White plate & sub-plate / Decora-style
  • Dimensions: Plate Width 2.75″; Plate Height 4.5
