TOA AV-60S-AM

MICRO AMPLIFICADOR 60W

PRESENTACIÓN: PIEZA

Categoría: Etiqueta:


Descripción

TOA AV-60S-AM

The AV-60S-AM is a single channel digital amplifier for speech and general announcement. This compact amplifier is equipped switching power supply circuit inside, Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms. The unit is suited to use in board room, conference room and AV presentation room.

60W @ 4 ohms / 60W @ 70V

  • Micro Class D amplifier for use in meeting/board rooms & signage applications
  • UL 2043-rated for plenum installation
  • Energy Star certified including Auto Off/Standby
  • Small in size (approx. 6″ x 6″ x 1.75″) allows convenient & flexible placement

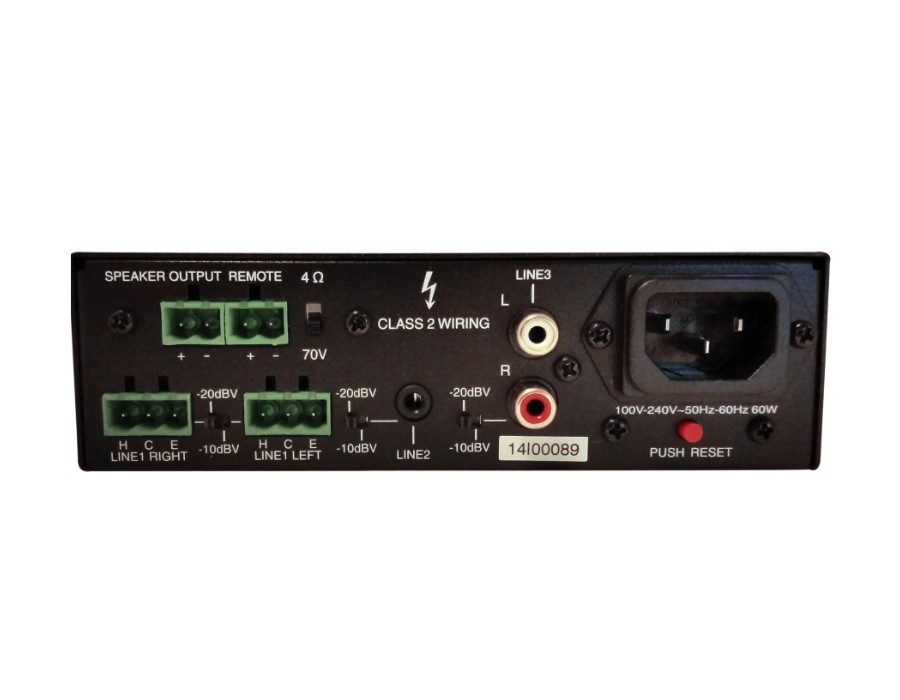

  • L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8″ TRS mini-jack and RCA connections
  • Bass & Treble Controls
  • Input signal present (-20dB) and Peak LED indicators
