TOA M-41S

ENTRADA DE MICRÓFONO CON ENVÍO DE SILENCIO

PRESENTACIÓN: PIEZA

Categoría: Etiquetas: ,


Descripción

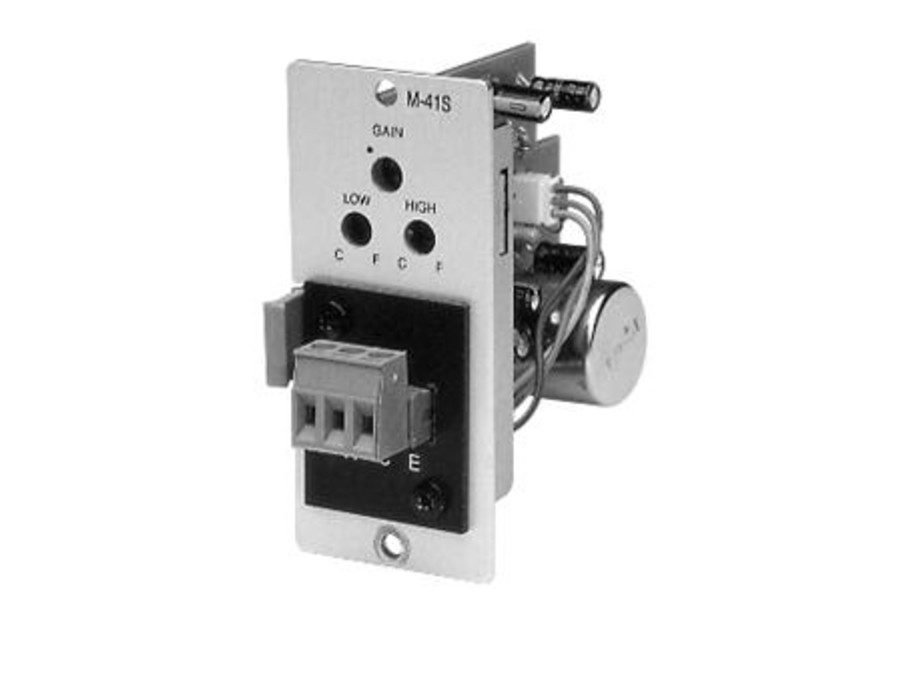

TOA M-41S

The M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier.The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.

  • Controls/Functions:
    • Gain Control
    • High and Low Cut Filters
    • Mute Send Sensitivity
    • Phantom Power
  • Performance Input: 600 tb
  • Input Sensitivity: -70 ~ -50 dBu
  • Gain (Adjustable): 32 ~ 52 dB
  • Maximum Input: -14 dB
  • Signal to Noise (S/N): -126 dBu (EIN 200 Ohm)
  • Physical Connector:Removable Terminal Block
