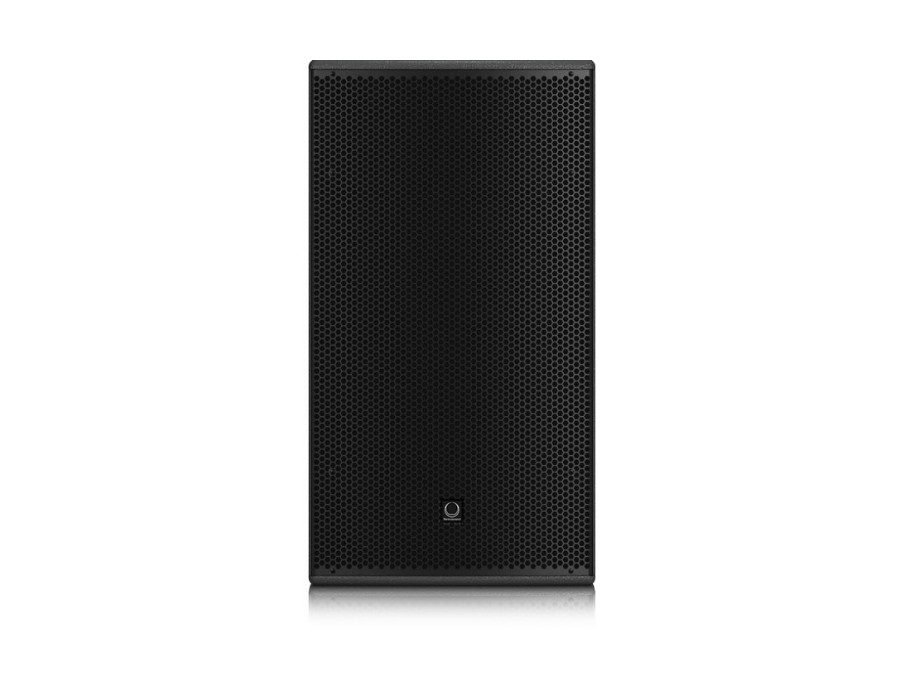

Weather resistant for outdoor use to IP54, the 2,000-Watt TCS115B-R is a front loaded 15″ subwoofer system designed for a wide range of fixed installation and portable PA applications. Engineered to work in conjunction with TURBOSOUND loudspeaker management systems, the TCS115B-R provides optimal low frequency reinforcement when used in conjunction with all TCS Series loudspeakers.
A bass reflex port design enclosure, with a high power, double suspension 15″ low frequency driver that utilizes a specialised voice coil wound on both the inside and outside of the coil former for higher magnetic density, better heat dissipation, higher power handling capacity, and improved efficiency. The TCS115B-R provides fast and accurate transient response for virtually distortion-free operation – even in your most demanding performances.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8″) birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Multiple internal rigging points allow bracket mount and suspension in any orientation. A dedicated range of fly plates and coupler kits are also available separately for constructing tightly packed custom full-range and subwoofer enclosure arrays for aesthetically pleasing and venue specific coverage requirements. Connectivity is provided in the form of a captive cable tail, which enters the cabinet by means of a sealed cable gland on an aluminium panel.
The loudspeaker shall be of the passive subwoofer type, consisting of one 15″ (387 mm) LF driver. The loudspeaker shall be weather resistant for outdoor use, to rating standard IP54. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 45 Hz to 150 Hz and within -10 dB from 40 Hz to 200 Hz. Nominal dispersion shall be “half space.” Nominal impedance shall be 8 Ohms. Power handling shall be 500 Watts continuous, 2,000 Watts peak. Sensitivity, measured on axis, mean averaged over stated bandwidth, shall be 97 dB, 1 Watt @ 1 metre. Maximum SPL (peak), measured at 1 metre with music program at stated amplifier input, shall be 130 dB. Dimensions: 834 mm high x 469 mm wide x 452 mm deep (32.9″ x 18.5″ x 17.8″). Net weight: 33.9 kg (74.7 lbs). The loudspeaker system shall be the TURBOSOUND TCS115B-R . No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance / size specifications are equaled or exceeded.
