Turbosound TPZ152/64

Turbosound TPZ152/64

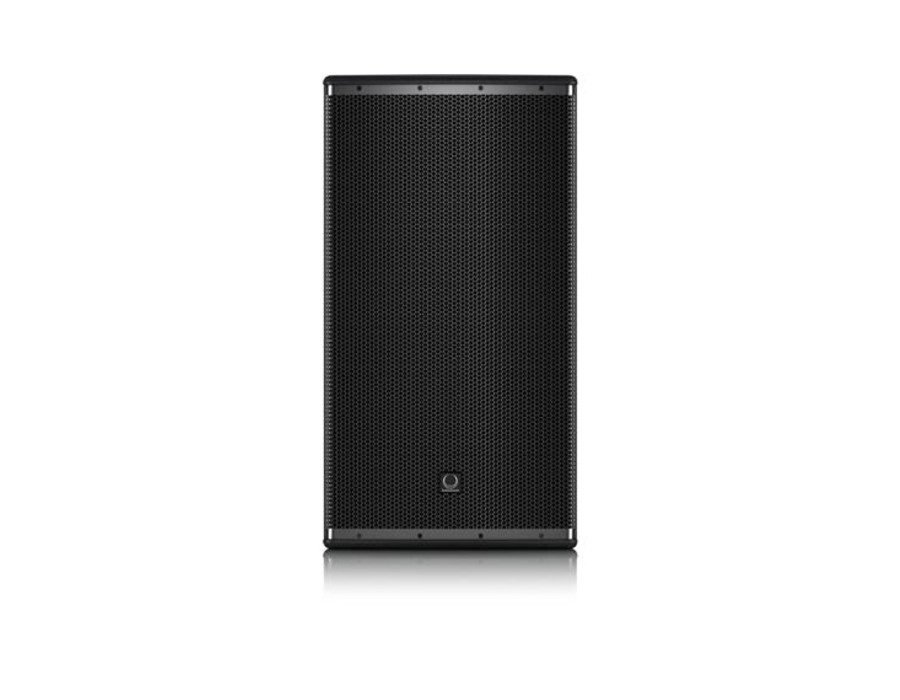

Turbosound TPZ152/64 Loudspeaker

The TPZ152/64 arrayable loudspeaker features a carbon fibre loaded 15″ low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4″ neodymium motor high frequency compression driver mounted on a rotatable 60° horizontal by 40° vertical waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch.

Finished in a highly durable semi matt black paint, the cabinet is constructed from 15 mm (5⁄8″) birch plywood – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam. Internal M10 threaded rigging points are provided for suspension in any orientation, or mounting with dedicated brackets – available separately. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

• Arrayable 2 way full range loudspeaker for installation applications
• Rotatable waveguide with 60° H x 40° V dispersion
• 650 Watts continuous, 2,600 Watts peak power
• Carbon fibre loaded 15″ low frequency driver with inside/outside wound coil
• Titanium dome 1.4″ neodymium motor compression driver
• Multiple array configurations for extended coverage
• Switchable passive/bi-amp operation for flexibility of use
• Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
