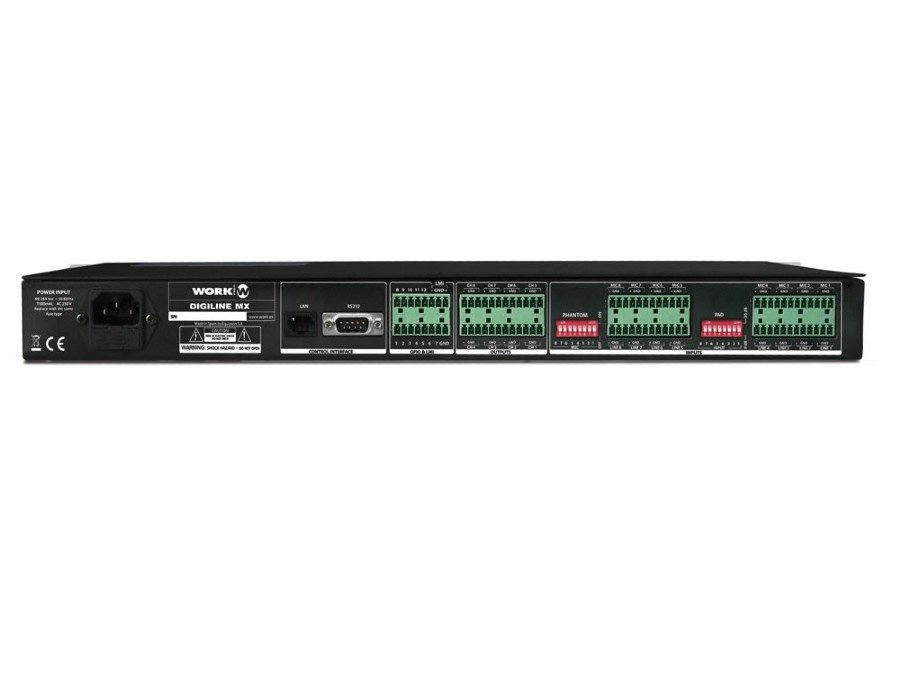

Work Pro Digiline MX

Work Pro Digiline MX

Digiline MX by itself is exclusively dedicated to processing uses, it means it doesn´t include amplifier, such Digiline 8 does. In only 1 HU 19″ rack unit, it is a very interesting alternative for those who already have a power amplifier or for others who need more power at the outputs.

The remote control can be operated through ASCII orders by RS 232 or TCP/IP. Thus, it is possible to program automatic actions like preset changes, mute for all channels except one, etc. It also features 12 GPIO inputs/outputs (against 4 GPIO for Digiline 8), providing further configuration possibilities.

Digiline MX features a RS232 port in order to receive ASCII orders from external devices that use this protocol. It is possible to program automatic actions like preset changes, mute for all channel except one, etc.

Digital matrix mixer of 8 x 8 (each input is composed of 2 inputs: 1 Mic and 1 Line).
Independent processing of signal for each output.
Controllable through TCP/IP protocol, in order to control from a unique computer all the units connected to an Ethernet network.
Third party controllers can be connected to control Digiline by TCP/IP and RS232 thanks to the command reader incorporated by its firmware.
All MIC inputs are phantom powered.
Powerful software WorkCAD Designer for Digiline connexion through TCP/IP.
GPIO triggering mode to launch actions, presets, etc from a simple controller.
