Work Pro PA 200 MX
PA 200 MX is an installation amplifier which incorporates 3 LINE inputs (INPUT 1 with BLUETOOTH function) with selector and its own volume control, two tone controls and LEDs which mark the signal presence and limit mode. Additionally, the amplifier incorporates microphone input, providing a mixing function and adding several features which set the system according to the installation requirements.
The functions that can be set are:
Mono/stereo input mode
3 gain levels in MIC input
3 anti-feedback presets in MIC input
PA 200 MX can operate with low impedance or 70/100V line loudspeakers.

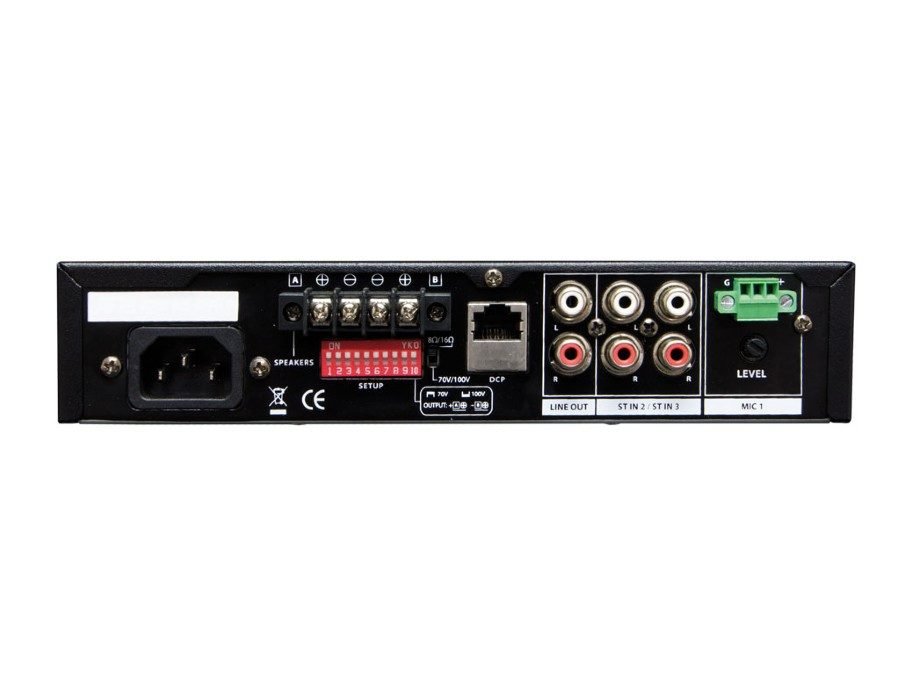

The operating mode is selected through a switch in the rear side and a dipswitch block which has some terminals reserved for future improvements.
