Work Pro PBA 60H

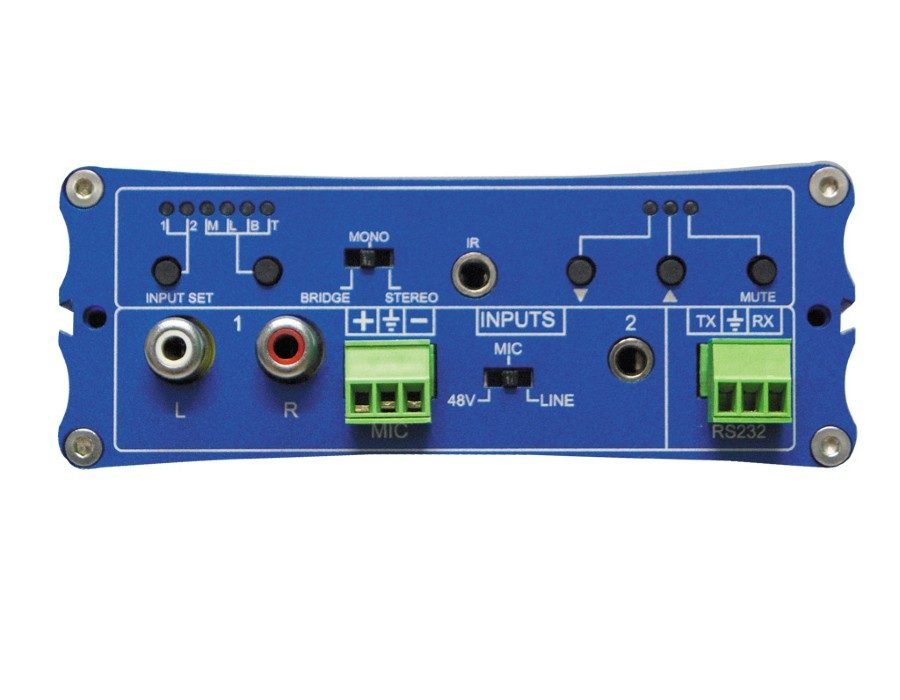

PBA60H is an ultra-compact 2x20W amplifi er (@4 ohm) that has several input sources: 2 stereo Line + 1 input that can be microphone or line. It includes tone control (low and high) and output gain controls. Both, the source selection and tone and gain control, are performed either manually with the small buttons on the chassis, either via RS232 remote control or even via infrared thanks to the built-in IR input. It also has both remote and manual mute control. The mic input can be with selectable phantom power or it change its function to line input.

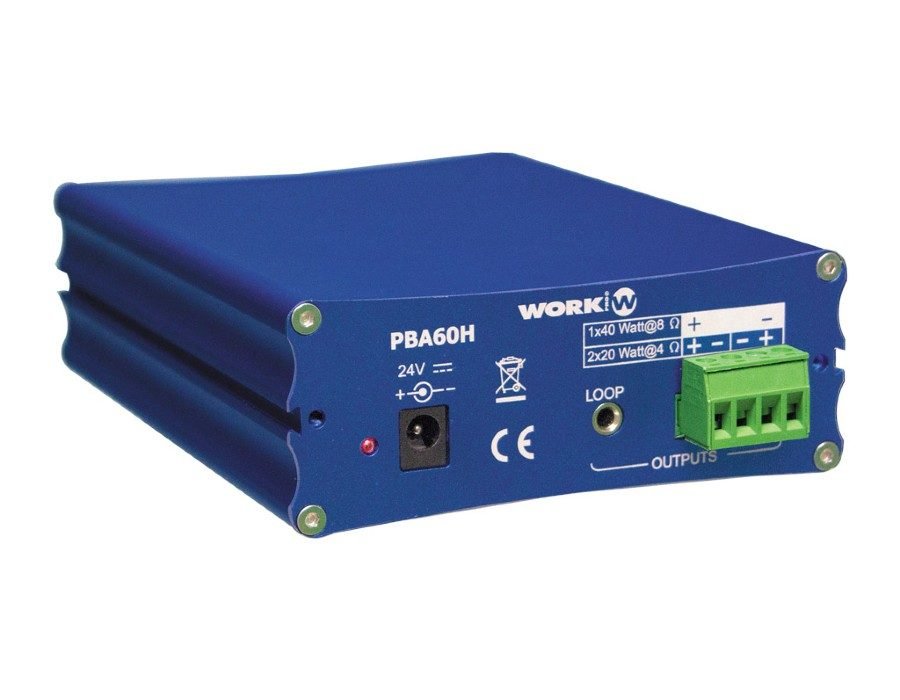

It has a stereo audio output with up to 2x20W @ 4 ohm or 1x40W @ 8 ohm in bridge mode. Additionally, it has a line output to feed another amplifi er signal.
It is powered at 24V DC making it compatible with the BL PS60 The chassis is the same as the used by BlueLine devices, so it can be mounted on the wall or it can use the BL AR19 to rack up to 4 units in a single rack unit, forming a stack of amplifiers up to 8x20W.
Compact amplifier 2x20W @ 4 ohm.
Bridge mode function at output 1x40W @ 8 ohm.
2 Line inputs.
1 Mic/Line selectable input for mixing with the other two signals.
RS232 and IR remote control interfaces.
Control of bass and treble tones and volume manually, IR or RS232.
Manual controls with micro-buttons.
Selectable phantom power.
Input power + 24V DC (compatible with BL PS60).
Additional line output to power another amplifier.
Chassis compatible with BlueLine installation accessories such as BL AR19.
