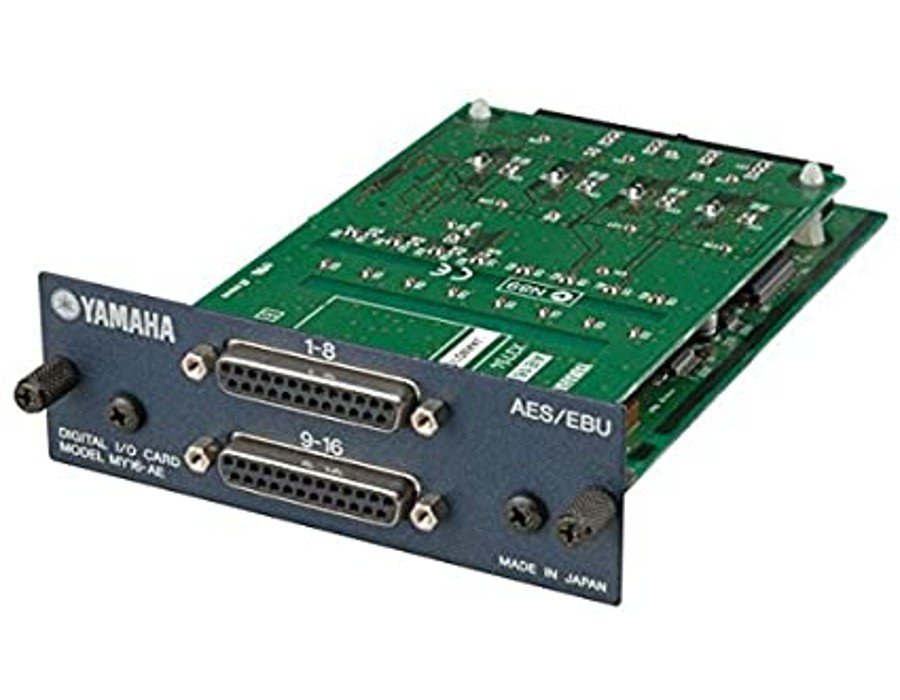

Yamaha MY16AE

16-channel multi-format I / O through a single slot

The MY16AE Mini-YGDAI digital I / O card can be used with Yamaha’s DM2000, 02R96, DM1000 and future digital consoles to provide up to 16 channels of / EBU-format Simultaneous AES (25 pin D-sub) I / O through a single expansion slot. All 16 channels can be used independently at sample rates up to 48 kHz, or the MY16AE card can be used for «dual channel» connection to 96 kHz recorders providing 8 channels of I / O at 88.2 or 96 kHz.

Connection with 96 KHZ recorders

Although the DM2000, DM1000 and 02R96 handle 96 kHz audio as standard, most digital recorders available today can only handle 96 kHz audio in dual channel mode (using 2 tracks to make one). In this configuration, the DM2000, DM1000 and 02R96 use a single track channel (96 kHz), but double the number of I / O connections must be used. The recently introduced MY16-AT / TD / AE cards can handle 16 channels of 44.1 / 48 kHz audio or up to 8 channels of 96 kHz audio in dual channel mode. With newer audio recorders that handle 96 kHz as standard (in double speed mode like the DM2000, DM1000 and 02R96) you can make standard connections using the MY8-AE96 (S) card. -AE96 MY8 (S) card can work both in double speed or single speed mode.

Specs:
