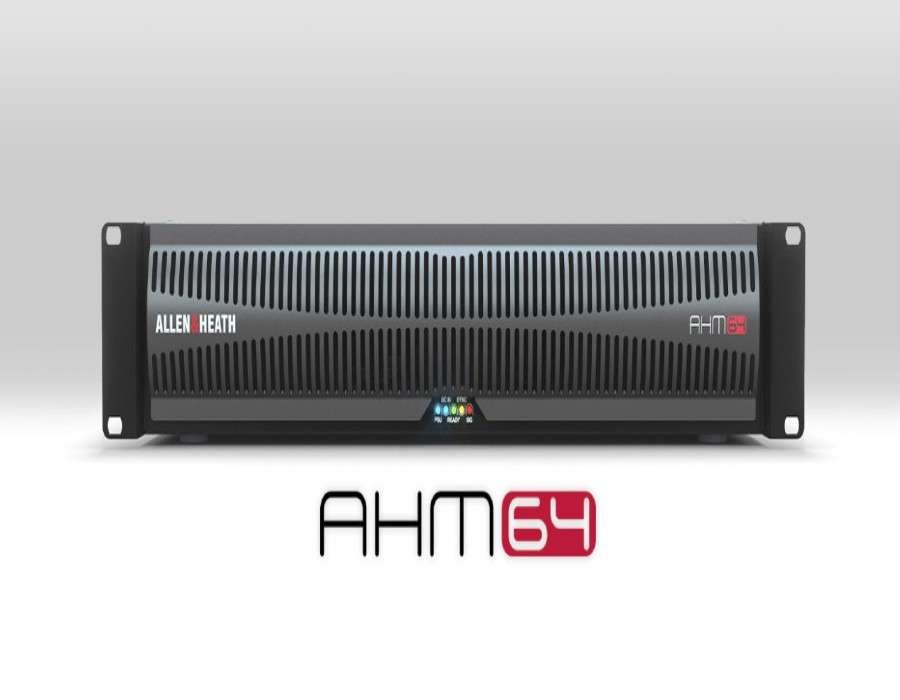

Allen & Heath AHM64

Name: Allen &amp; Heath AHM64
SKU: 88677
Availability: BackOrder

The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.

The Acoustic Echo Cancellation (AEC) modules for AHM-64 & AHM-32 provide 12 channels of AEC and are designed for teleconferencing and videoconferencing applications.

The AEC processors are assigned using channel inserts in the AHM. One insert sits in the far-end Input channel, and the other in the near-end Input channel. A Sound Reinforcement output is also provided for cases where local voice reinforcement is required.

SPECIFICATIONS

AEC (Acoustic Echo Cancelling) module for AHM-64 & AHM-32
12 channels of AEC
150ms FIR Adaptive Filter
Far-end AGC (Automatic Gain Control)
Residual echo NLP (non-linear processing)
Background noise reduction
Near-end gating
Speech-shaped comfort noise

With remote attendance of meetings and conferences becoming increasingly common, high quality audio is critical to ensure intelligibility for all attendees.

Remote participants often experience distracting echoes – caused by their voice being played over speakers in the conference room, picked up by multiple microphones and broadcast back to the caller – which can seriously impede the clarity of the audio, and the flow of the meeting.

Allen & Heath’s Acoustic Echo Cancellation intelligently detects the «echo» in the remote participants feed, plus any residual effects caused by room acoustics, and utilises dedicated hardware processing to minimise the unwanted audio.

Allen & Heath AHM64

Allen & Heath AHM64

Allen & Heath AHM64

SPECIFICATIONS
