Avante Audio Imperio Sub10

Avante Audio Imperio Sub10

Avante Audio’s Imperio mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.

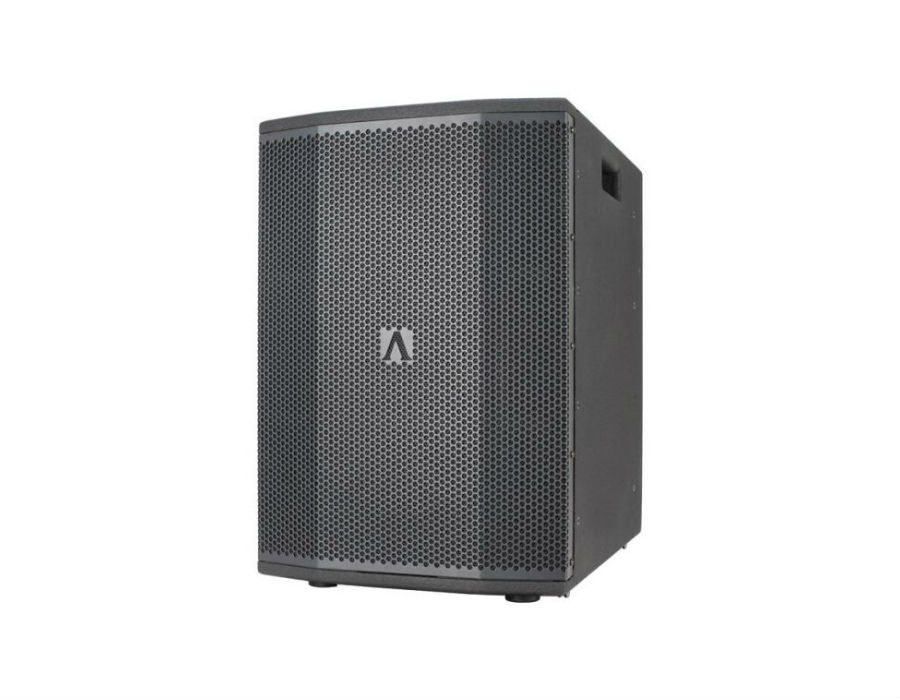

10-inch, 400 Watt Subwoofer with Class D Digital Amplifier. Part of the Imperio Mini Line Array Series.

AMPLIFIER:

• 400 watts RMS, Class D Power Amp, 800 watts Peak Power
• 100-120V / 220-240V ~ 50/60Hz (country specific)
• LED Power / Signal / Clip Indicator
• Input: 1x 3pin XLR powerCon (NAC3FCA)
• Output: 1x 3pin XLR powerCon (NAC3FCB)
• Phase Switchable (0 / 180)
• Internal Selectable X-Over 90Hz or 120Hz)
• Volume Control Dial

DRIVER:

• 1x 10” Woofer w/2.5” Voice Coil
• 123dB (at max output)
• Plywood Cabinet, black finish
• 6th Order Bandpass Design
• M20 Screw Pole Mount
• 1.2mm Steel Grill
