Biamp Vocia VA-8600

AMPLIFICADORES DIGITALES  DE 8 CANALES

PRESENTACIÓN: PIEZA

Este producto no está disponible porque no quedan existencias.

SKU: N/D Categoría: Etiqueta:


Descripción

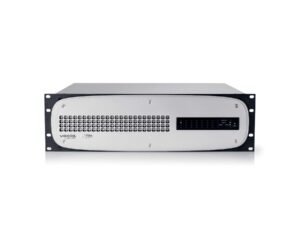

Biamp Vocia VA-8600

The Vocia VA-8600 is a digital networked multi-channel amplifier for use in Vocia® systems. The VA-8600 is CobraNet® enabled and can support up to eight AM-600 modular amplifier cards. These are individually software configurable from 100–600 Watts per channel up to a maximum of 2400 Watts of power per chassis. 70V, 100V and low-impedance outputs are software selectable per card. The amplifiers can be configured for channel-to-channel or device-to-device failover. The amplifier uses comprehensive fixed-chain digital-signal processing within the device, including volume control, ducking, equalization, compressor/limiter, speaker crossover, delay, and output gain. Emergency messages for life-safety compliant systems are stored in non-volatile memory within the VA-8600. Intuitive software provides audio system design via PC. Two RJ-45 connectors on the rear panel of the VA-8600 provide redundant connectivity to control data and audio over a single Ethernet cable and caters for an optional page active relay or dual 3:1 / 7:1 failover module

Modular based design • Amplification modules have software configurable power levels/load options o 8 amplification modules per frame with 100 to 600 Watts per module o 70V or 100V with direct drive capability, or lowimpedance (4 or 8Ω) operation o Maximum of 2400 Watts of power in a device • Failover capability between channels and amplifiers o Device-to-Device o 1:1 o Dual 3:1 (VFOM-1 module required) o 7:1 (VFOM-1 module required) • LED Indication: o Amplifier failure o Clip present o Fan stuck-rotor o Heat sink temperature fault o Signal peak o Signal present • Local non-volatile storage of emergency messages • Software Monitoring Features: o Amplifier failure o Excessive clipping o Fan stuck rotor o Heat sink temperature fault o Peak present o Short circuit on output • Software-configurable signal processing including volume control, filters, compressor/limiting, delay, speaker equalization, and output sensitivity • CobraNet audio and control data over a single Ethernet cable • Dual Ethernet ports for redundancy • Rotary switches for unit identification • Rack mountable (3RU) • CE marked, UL listed & RoHS compliant • Covered by Biamp Systems’ 5-year warranty

Información adicional

OPCIONES

8600c
