Bogen ASUG1/DK

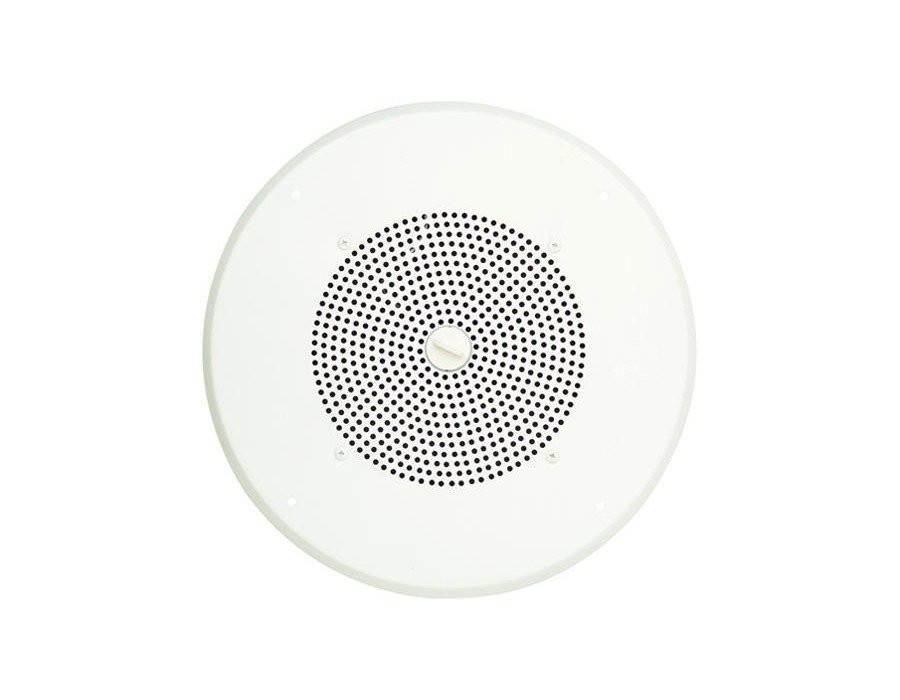

Finished in bright white, the Bogen Communications ASUG1DK is an 8″ 1W amplified speaker assembled on a ceiling grille for paging, talkback, background music, and security applications in schools, warehouses, offices, and more. With a built-in amplifier and an 8″ cone-type loudspeaker, it delivers a 1W output, a maximum SPL of 92 dB, and a frequency response of 100 Hz to 10 kHz. It operates via a 24 VDC power source. Integrate the ASUG1DK with a standard 600-Ohm telephone line, and adjust the volume via the detachable knob without having to remove the speaker or grille. The grille
Loudspeaker shall be assembled on a 12.875 inch diameter steel ceiling grille, finished in off-white semi-gloss enamel, for recessed installation. The loudspeaker shall include a detachable volume control knob. The product weight shall be 5 lb.
Volume control knob allows adjustment of the paging level at each speaker location in the system with a detachable knob available on ASUG1DK. The speaker is available unmounted or fully assembled in an Off-white ceiling grille, or on a Bright White ceiling grille (ASUG1 & ASUG1DK).
- 8inch Cone speaker
- Self-contained 1-watt amplifier
- Interfaces with standard 600-ohm telephone line
- Available on a bright white semi-gloss enameled ceiling grille
- Ceiling assembly with detachable front-mounted volume control knob.
