Bogen C10

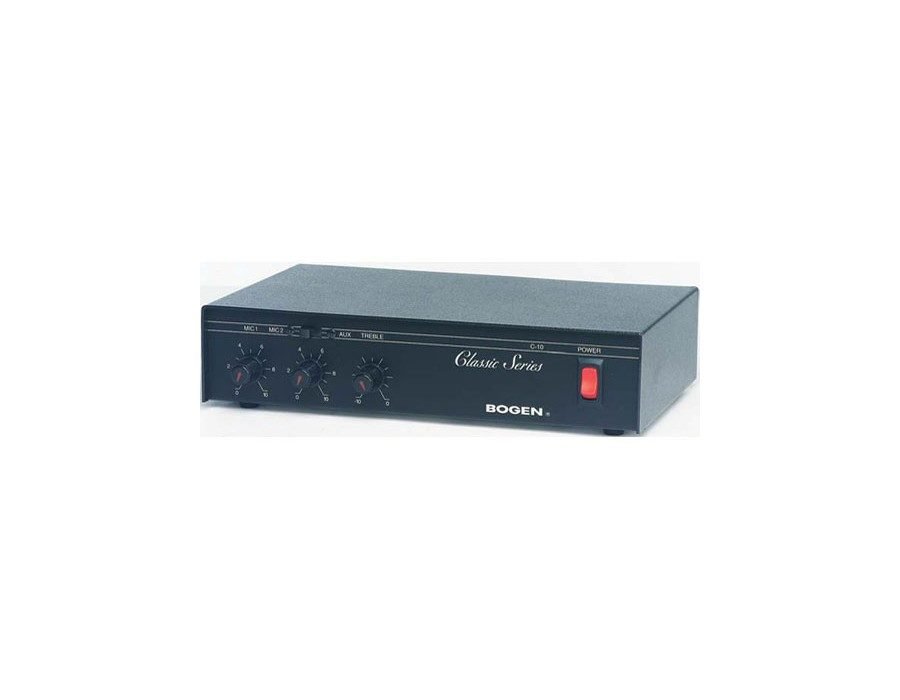

Bogen C10 Classic Series Mixer-Amplifiers
The Classic Series C10 Public Address Amplifier from Bogen is rated at 10W and can accommodate low-impedance microphones and high-impedance auxiliary sources. It features a front panel selector switch and a choice of either two low-impedance balanced microphones (Mic2, Mic2) or one microphone and one auxiliary input (Mic1, Aux).
The Bogen Classic Series Models C10 and C20, offer dependable performance and flexibility. The C10 is rated at 10 watts. The C20 is rated at 20 watts. Both models are listed to UL Standard 60065 for US and Canada. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.
This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panels are equipped with variable output taps at 4/8/16 Ohms and 25/70V. The amplifier is powered by 120 VAC. In addition, a thermostat enclosed in the power transformer protects the unit against overloads.
C10 & C20 have 10W and 20W output power, respectively •Transformer isolated 4Ω, 8Ω, 16Ω, 25V and 70V output taps • Rear panel auxiliary receptacle • One dedicated MIC 1 input — Lo-Z balanced • One switchable MIC 2/AUX 1 input • Contact muting of AUX input • Transformer-isolated 600Ω telephone paging input • Separate rear panel-mounted TEL volume control.
