Bogen BPA60

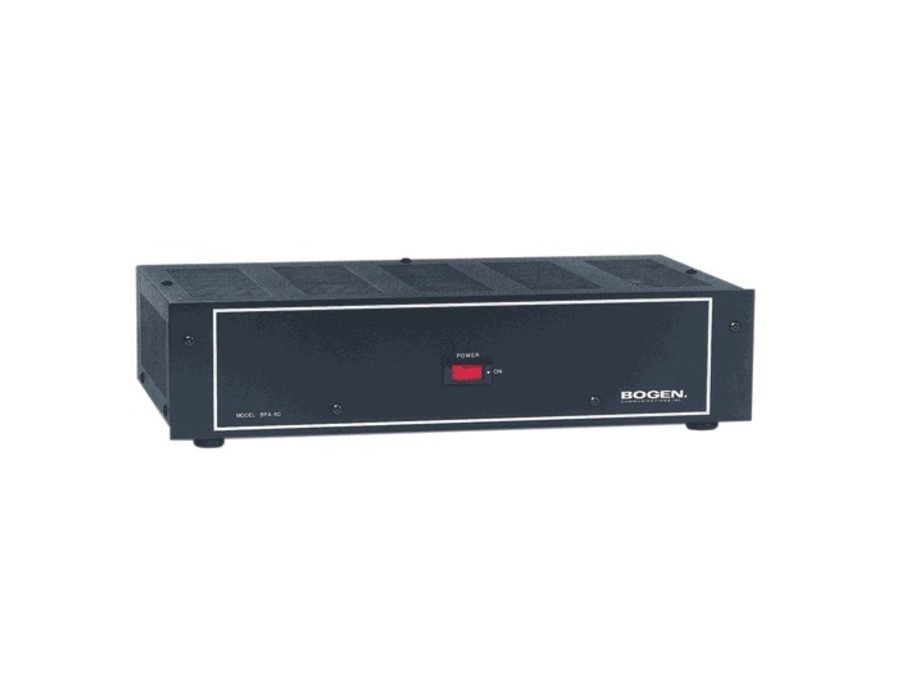

Bogen BPA60 Mono-Channel Power Amplifier
The BPA60 from Bogen is a solid-state, 60W power amplifier that has been designed for professional and commercial sound systems. It can be driven from an amplifier that provides a 25- or 70-volt output and is thermally protected to prevent damage due to excessive temperatures.
Additional protection for the amp is provided by transient protection diodes and an electrical circuit breaker. The illuminated on/off power switch is located on the front panel. An input level control, circuit breaker reset, low-cut filter switch, and auxiliary receptacle are located on the rear panel.
The Bogen BPA60 solid-state power amplifier has been designed to fulfill the power amplification requirements of professional and commercial sound systems. The Model BPA60 supplies 60 watts RMS output. Total harmonic distortion is less than 2% at rated output from 50Hz to 15 kHz. Input impedances for the BPA60 are: high-impedance (50k-ohms) unbalanced; and low-impedance (500/600 ohms, balanced or unbalanced) with accessory transformer Model TL600. Line-bridging may be achieved with accessory transformer Model TL100. Hum and noise are at least 85dB below rated output. The BPA60 amplifier may be driven from an amplifier that provides a 25- or 70-volt output (with WMT1A accessory). Output impedances for the BPA60 are: 8-ohm/25V, 16-ohm, 25VCT and 70V. Output regulation is better than 2dB from no load to full load.
