Bogen C20

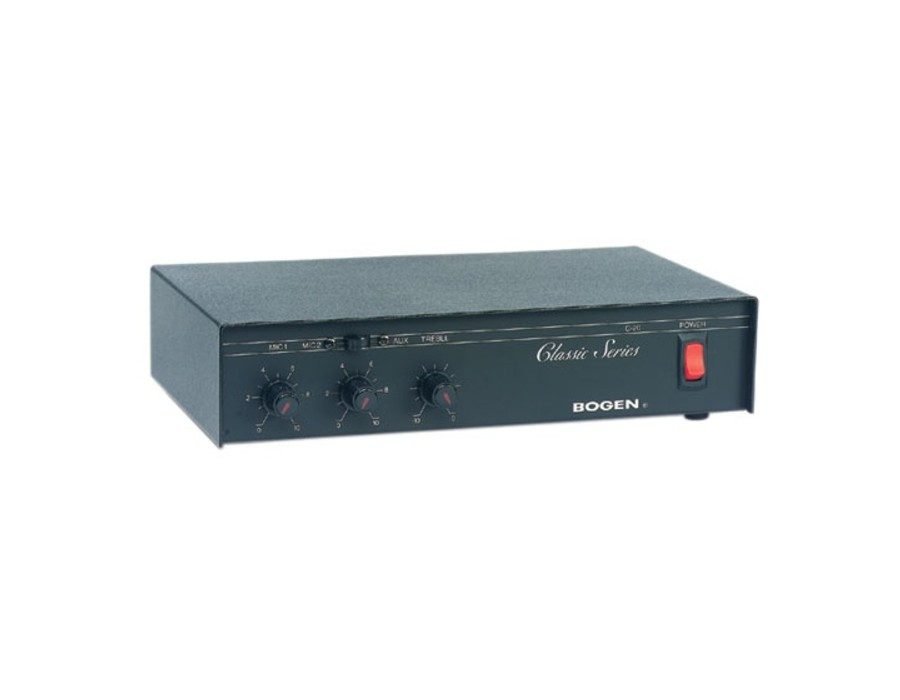

Bogen C20 Classic Series Mixer-Amplifiers
The Classic Series C20 Public Address Amplifier from Bogen is rated at 20W and can accommodate low-impedance microphones and high-impedance auxiliary sources. It features a front panel selector switch and a choice of either two low-impedance balanced microphones (Mic2, Mic2) or one microphone and one auxiliary input (Mic1, Aux).
The Bogen Classic Series Models C10 and C20, offer dependable performance and flexibility. The C10 is rated at 10 watts. The C20 is rated at 20 watts. Both models are listed to UL Standard 60065 for US and Canada. The Classic Series is designed with discreet complementary transistor circuitry to assure maximum reliability of power output stages.
This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panels are equipped with variable output taps at 4/8/16 Ohms and 25/70V. The amplifier is powered by 120 VAC. In addition, a thermostat enclosed in the power transformer protects the unit against overloads
- 10W, 20W, 35W, 60W, & 100W models
- 4 inputs (C35/60/100 models): 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- 3 inputs (all C10/C20 models): 1 MIC (Lo-Z), 1 TEL, plus 1 selectable MIC or AUX
- 4-ohm, 8-ohm (not on C100), 16-ohm, 25V, & 70V outputs
