Bogen C35
Bogen C35 Classic Series Mixer-Amplifiers

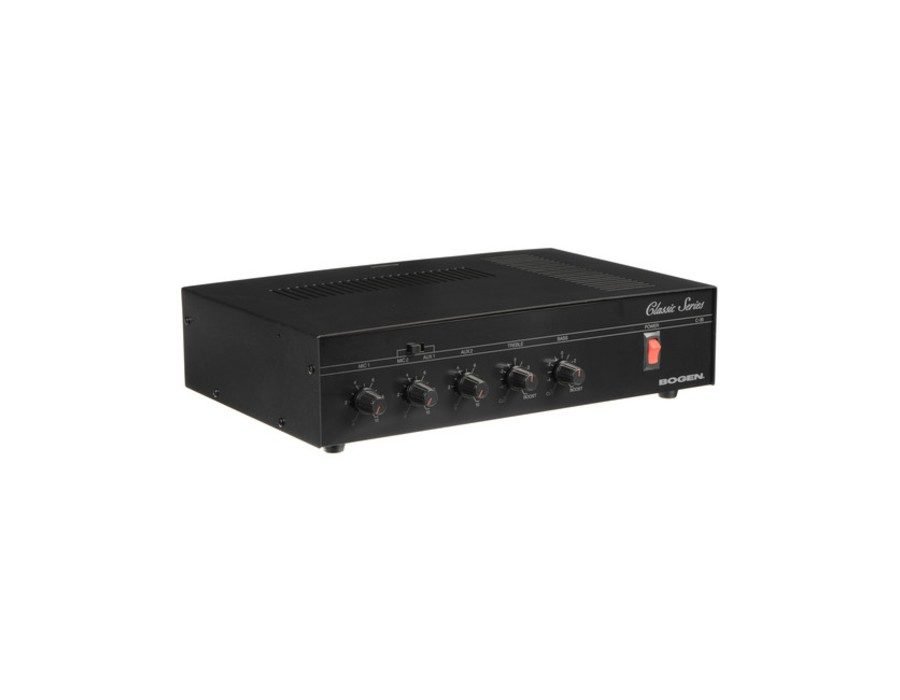

The C35 Classic Series Public Address Amplifier 35W from Bogen is a reliable mixer/amplifier. This amp uses discreet complementary transistor circuitry for reliable power at each output stage. The rear panel has variable output taps at 4/8/16 ohms and 25/70V. This amp has 4 inputs with independent volume controls plus treble and bass controls. Output jacks are provided for recording or secondary amplifiers.
The Bogen Classic Series Models C10 and C20, offer dependable performance and flexibility. The C10 is rated at 10 watts. The C20 is rated at 20 watts. Both models are listed to UL Standard 60065 for US and Canada. The Classic Series is designed with discrete complementary transistor circuitry to assure maximum reliability of power output stages.
The Bogen Classic Series Models C35, C60, and C100 are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources. Output screw terminals are provided for 4-ohm (direct) and 8-ohm (C35 & C60 models only), 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.
- 10W, 20W, 35W, 60W, & 100W models
- 4 inputs (C35/60/100 models): 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
- 3 inputs (all C10/C20 models): 1 MIC (Lo-Z), 1 TEL, plus 1 selectable MIC or AUX
- 4-ohm, 8-ohm (not on C100), 16-ohm, 25V, & 70V outputs
