Bose DesignMax DM2S



Este producto no está disponible porque no quedan existencias.

SKU: N/D Categoría: Etiqueta:


Bose DesignMax DM2S

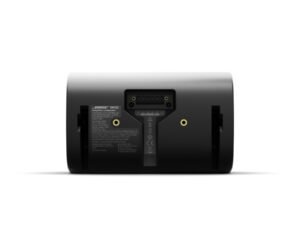

Bose DesignMax DM2S Loudspeaker (Product Code 815013-0110 black, 815013-0210 white)

Premium sound to maximize any design.

Bose DesignMax DM2S, a complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt DesignMax DM2S loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2S loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The DM2S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.


Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

Technical Summary

Frequency Response (+/-3 dB)
95 – 18,000 Hz

Nominal coverage (H x V)
180° x 155°

Power Handling, peak
80 W

Maximum SPL @ 1m
96 dB

Frequency Range (-10 dB)
85 – 19,000 Hz

Power Handling, long-term continuous
20 W

Sensitivity (SPL/1W @ 1 m)
83 dB

Nominal Impedance
16 Ω (transformer bypass)


  • Performing arts venues
  • Places of worship
  • Conference centers
  • Retail stores
  • Restaurants and bars
  • Hospitality venues

Más productos Bose

Información adicional


Black, White
