Intelix DL-HD24A-H2

Intelix DL-HD24A-H2

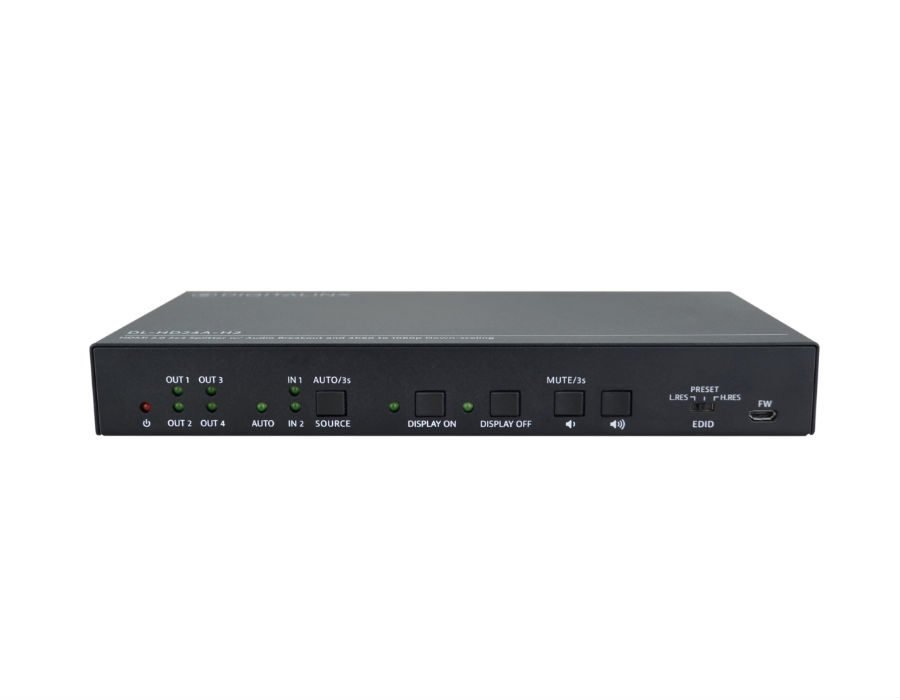

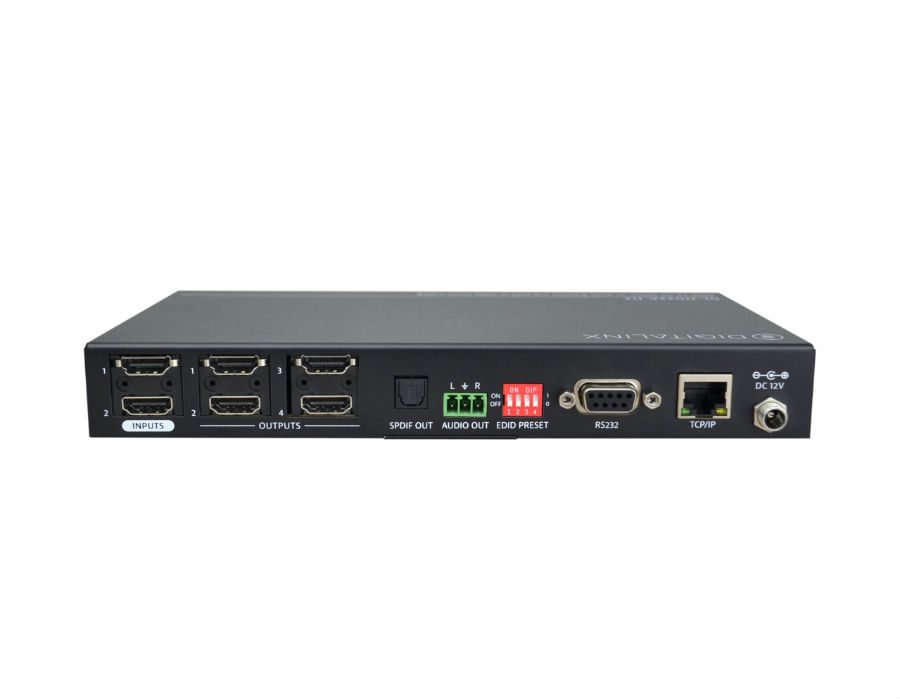

The Digitalinx DL-HD24A-H2 is an HDMI 2.0 compatible 2:4 auto scaling and auto switching HDMI distribution amp / splitter that features two HDMI inputs and four HDMI outputs. The splitters HDMI outputs can switch as a group to either input via auto or manual switching methods and supports down scaling so a 4K video input can automatically be down scaled to an 1080p output when connecting a display that only supports resolutions up to 1080p. The DL-HD24A-H2 supports 4K signals up to 4K@60Hz / 4:4:4 / 8 bit color and features an easy EDID management option using dip switches on the rear panel of the unit. Analog and digital audio can be de-embedded from the selected HDMI input and the DL-HD24A-H2 supports CEC control and is HDCP 2.2 compliant. The DL-HD24A-H2 can be controlled via front panel buttons, RS232 or by TCP/IP control.

• HDMI 2.0 18G HDMI switching distribution amplifier
• 2 switchable HDMI inputs and 4 HDMI outputs
• Front panel button, RS232, or TCP/IP control for input selection
• Supports 4K60 8-bit 4:4:4 color & HDR
• Analog and Digital audio de-embedding
• HDCP2.2 compliant
• Auto down scaling for maximum compatibility with mixed resolution displays

Applications

• Entertainment; restaurants, bars, bowling alleys
• Residential; man-caves
• Digital signage HDMI distribution
