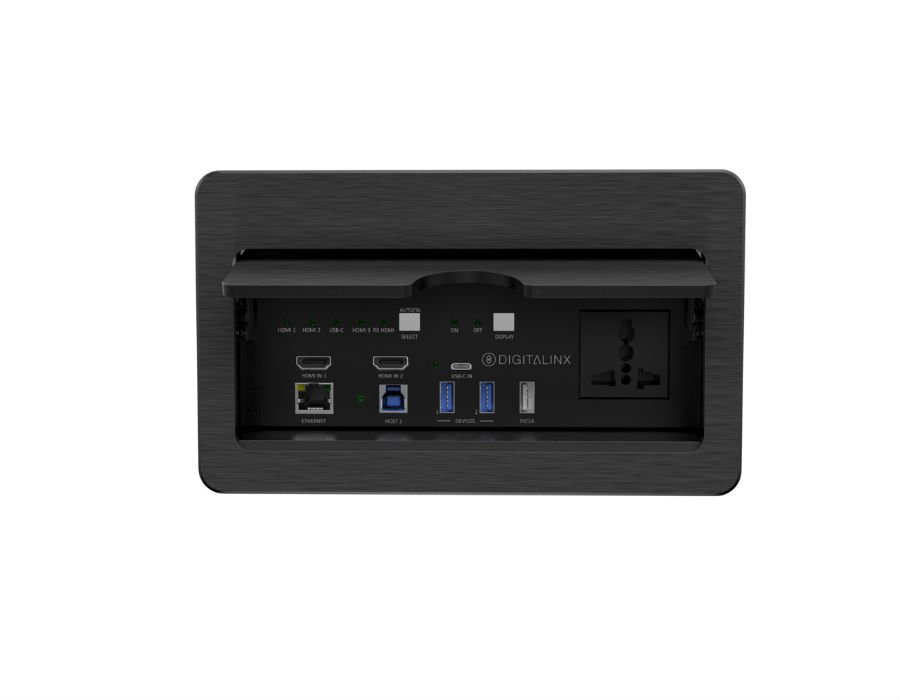

Intelix DL-SC41UP-BXTX

Conference, Huddle, Training room 4×1 Matrix presentation switcher. Becomes 5×1 when using optional HDBaseT Receiver with HDMI input
3 HDMI, 1 USB-C on transmitter plus 1 HDMI input on receiver when used, pass-through ethernet, and AC power
1 HDMI and 1 HDBaseT output up to 70 meters
6 port USB3.0 high speed hub includes 2 USB-B host ports and 4 USB-A peripheral ports. USB-C acts as a 3rd host port
Add 2 additional USB2.0 type A client ports when combined with HDBaseT receiver
Combine with DL-SCU-RX when HDBaseT is required
AC Power for switch and pass-through will provide 40w USB-C charging power, or power via 1 way PoC from HDBaseT RX
Supports resolutions up to HDMI 2.0b, 4K/60Hz/4:4:4 8bit, HDR 10
HDCP2.2 Compliant
Fully function USB-C port provides up to 40w charging power when device is locally powered
Power delivery can be PoH from RX to TX or locally powered when stand alone, or when USB-C power is desired
EDID management per input
Auto Display control to power on/off display when source is detected. Also offers 2 relays for screen, shades, etc when combined with HDBaseT RX
Control via TCP/IP, RS232, or front panel buttons
