Intelix HD12S

AMPLIFICADOR DE DISTRIBUCIÓN HDMI

PRESENTACIÓN: PIEZA

Description

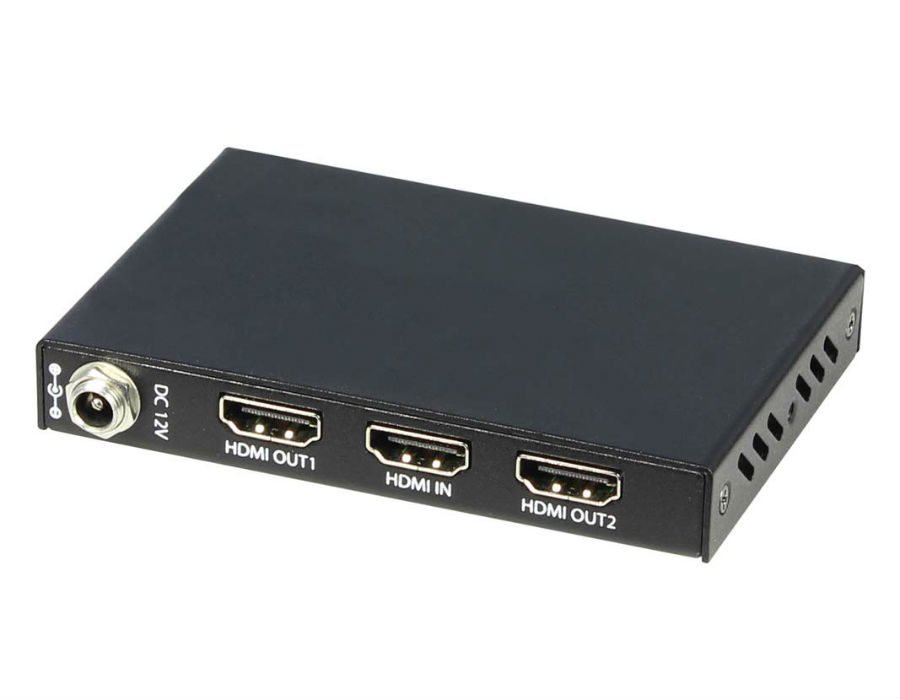

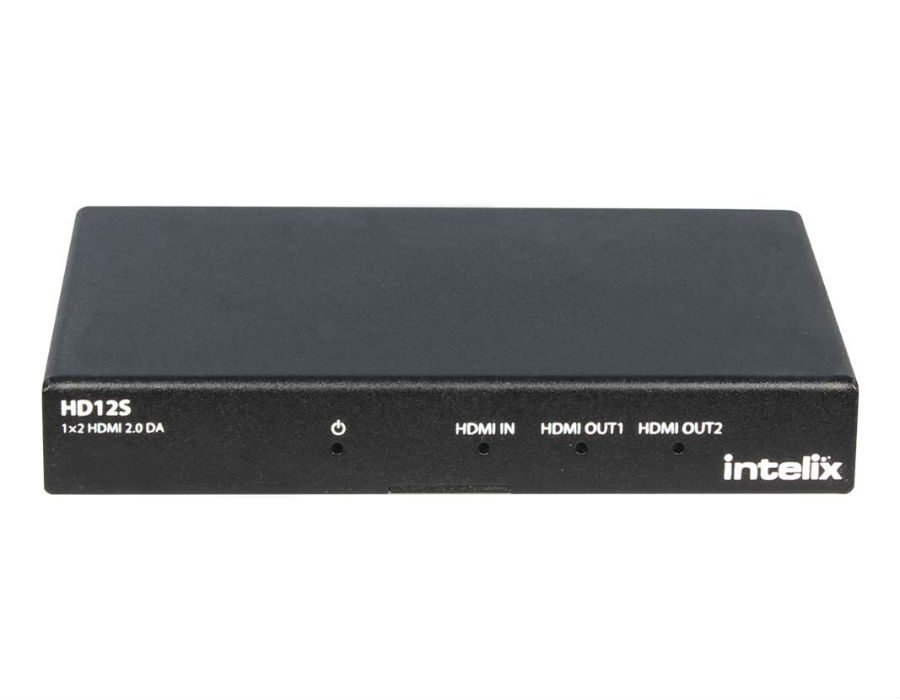

Intelix HD12S

The Intelix HD12S is a 1:2 HDMI distributor with HDMI 2.0, HDR and HDCP 2.2 support. The HD12S supports data rates up to 18Gbps and resolutions of 4K2K@60Hz (4:4:4). The HD12S features one HDMI input and two HDMI outputs.

The Intelix HD12S includes input cable equalization and signal regeneration compensation, which reduces the need for additional signal conditioning equipment by compensating for signal loss when using long input cables or cascading multiple units.

  • 1X2 HDMI distribution amplifier/splitter
  • Copies EDID information from display on first active output
  • HDMI 2.0+, HDR and HDCP 2.2 compliant
  • Supports resolutions up to 3840×2160@60Hz 4:4:4 / 8 bit deep color
  • Locking power supply
  • Includes mounting hardware

Applications

  • HDMI signal distribution to multiple displays
  • Digital Signage and retail display management
  • Restaurant and bar, office wait areas
