Intelix HD14S

AMPLIFICADOR DE DISTRIBUCIÓN HDMI

PRESENTACIÓN: PIEZA

Description

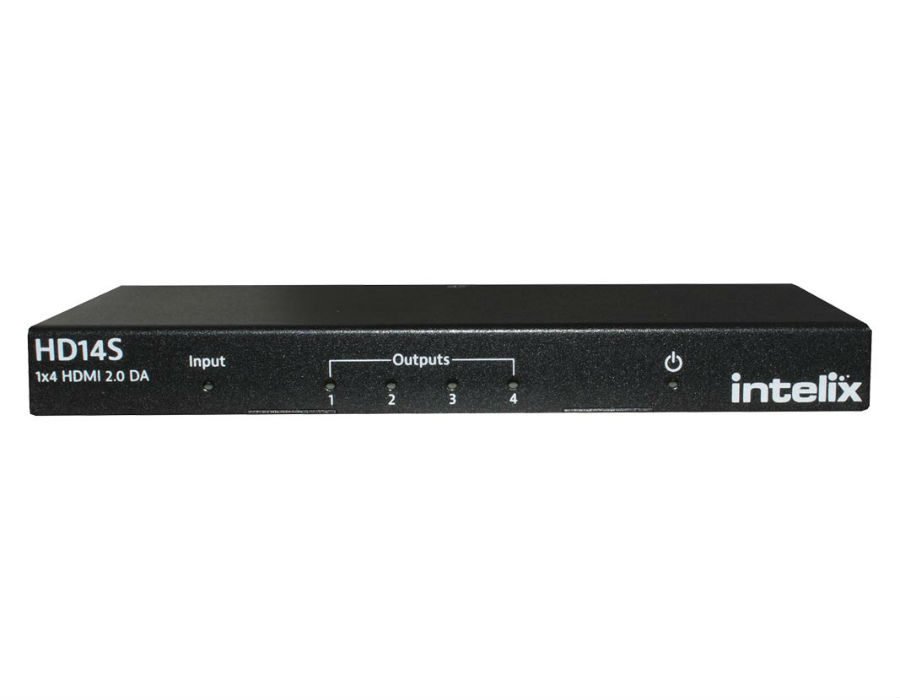

Intelix HD14S

The Intelix HD14S is a 1×4 HDMI splitter with HDMI 2.0 and HDCP 2.2. The HD14S supports data rates up to 18Gbps and resolutions of 4K2K@60Hz (4:2:0). The HD14S features EDID management which provides multiple EDID options for various resolutions output and HDCP encryption between all devices, ensuring the HDMI source reliably outputs the correct content for the display.

The Intelix HD14S includes input cable equalization and signal regeneration compensation, which reduces the need for additional signal conditioning equipment by compensating for signal loss when using long input cables or cascading multiple units.

  • 1×4 HDMI distribution amplifier/splitter
  • 4K, HDMI 2.0, HDCP 2.2 compliant
  • Supports 18G 4K60 4:4:4
  • Adjustable EDID management
  • Field firmware upgradeable
  • Locking power supply
  • Includes mounting hardware

Applications

  • HDMI signal distribution to multiple displays
  • Digital Signage and retail display management
  • Restaurant and bar, office wait areas
