JBL CSS8004

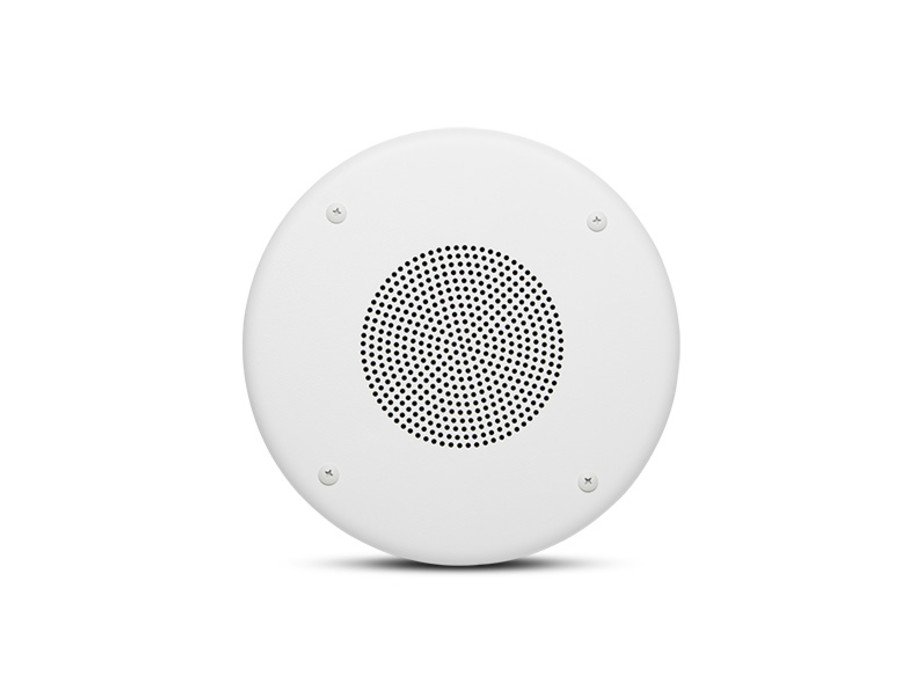

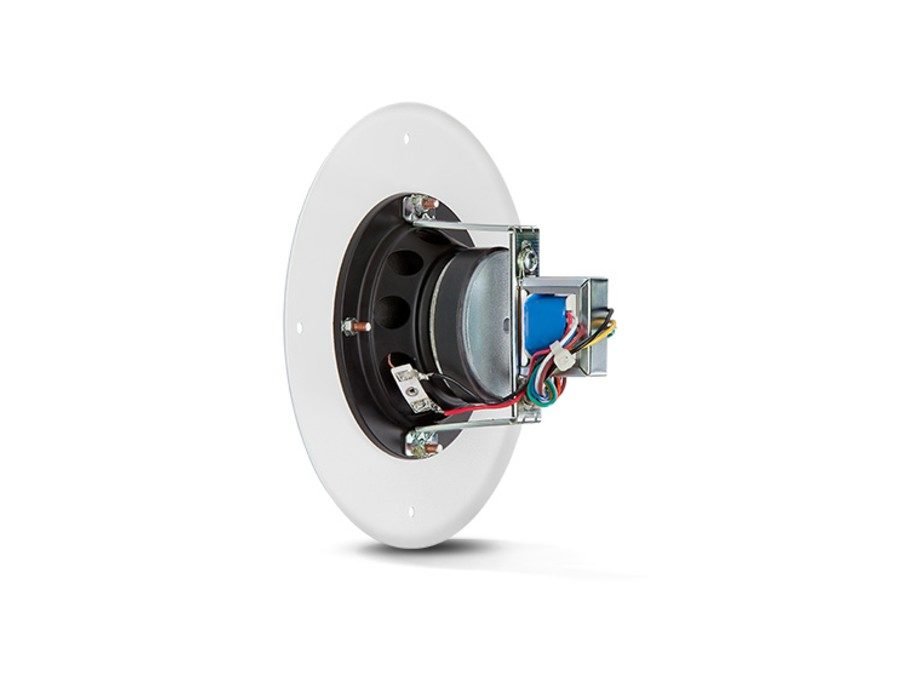

JBL CSS8004 100 mm (4 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

High 90 dB sensitivity
5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
Very wide 175° coverage
Fits CSS-BB4 backcan

Specifications

Drivers 100 mm (4 in)

Sensitivity 90 dB (2k – 6k Hz)

Frequency Range (-10 dB) Driver/Grille Assembly 85 Hz – 18 kHz

Installed in CSS-BB backcan 130 Hz – 18 kHz

Coverage Angle 175° conical

Driver Continuous Power Handling 15 Watts

Transformer Taps 5W, 2.5W, 1.3W

Transformer Taps 5W, 2.5W, 1.3W, 0.7W

Transformer Insertion Loss 1.5 dB Maximum

Transformer Connection Bare wire

Motor Mass 200 g (7 oz)

Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

Matching CSS Backcan CSS-BB4

Other Compatible Backcans N/A

Bolt Mounting Circle to Backcan 4 points on 165 mm(6.5 in) diameter

Cutout DiameterOpen-back 125 mm (5.0 in)

In CSS-BB backcan 170 mm (6.7 in)

Depth (behind grille) 94 mm (3.7 in)

Grille Diameter 198 mm (7.8 in)

Net Weight (each) 0.90 kg (1.0 lb)

Shipping Weight (ea) 1.26 kg (2.8 lb)
