JBL PRX412M

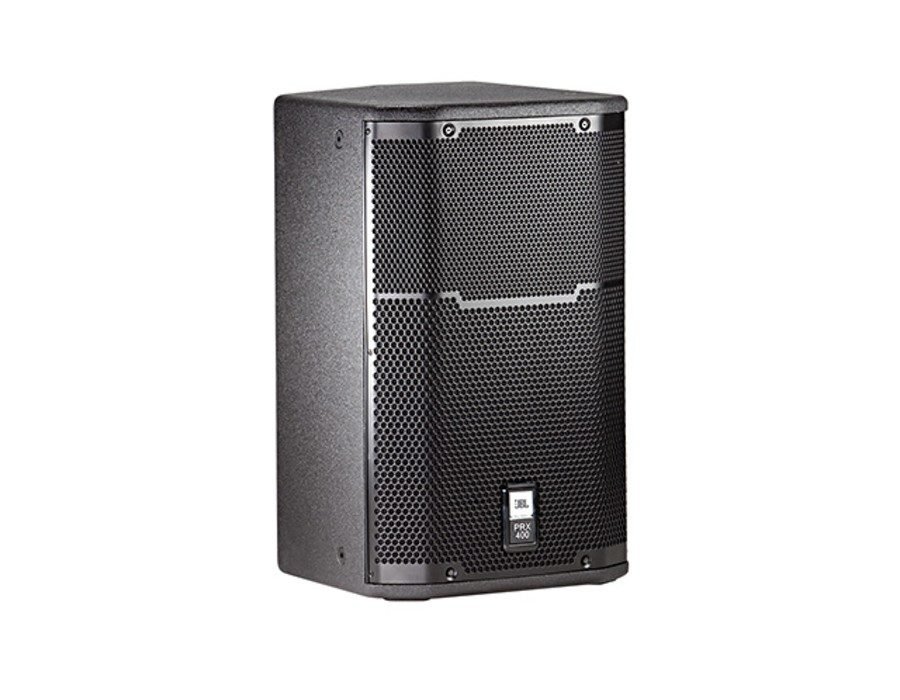

JBL PRX412M 12″ Two-Way Stage Monitor and Loudspeaker System

PRX412M is a portable, twelve-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.

90° x 50° coverage for even and smooth response on and off axis
Dual-angle pole socket for applications requiring tripod mounting
Heavy Duty 16 gauge protective screen backed steel grille
Tough DuraFlex™ enclosure finish
Utilizes twelve M10 suspension points for safe deployment in light duty installations.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

The PRX412M is a premium,
utility/monitor speaker. The PRX412M
uses a 305 mm (12 in) woofer and a
2414H-C 25 mm (1 in) polymer
diaphragm compression driver for
300 watts (continuous) power capacity.
A 90° x 50° horn provides smooth,
even coverage whether used in the
vertical (mains) or horizontal (monitor)
orientation.

Specifications

Frequency Range (-10dB) 50 Hz – 20 kHz

Frequency Response (±3 dB) 62 Hz – 19 kHz

Coverage Pattern 90° x 50° nominal

System Sensitivity 95 dB SPL (1w@1m)

Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)

Maximum SPL (1m) 126 dB SPL peak

Nominal Impedance 8 ohms

Dimensions (H x W x D) 574 mm x 353 mm x 399 mm (22.6 in x 13.9 in x 15.7 in)

Net Weight 16 kg (35 lbs.)

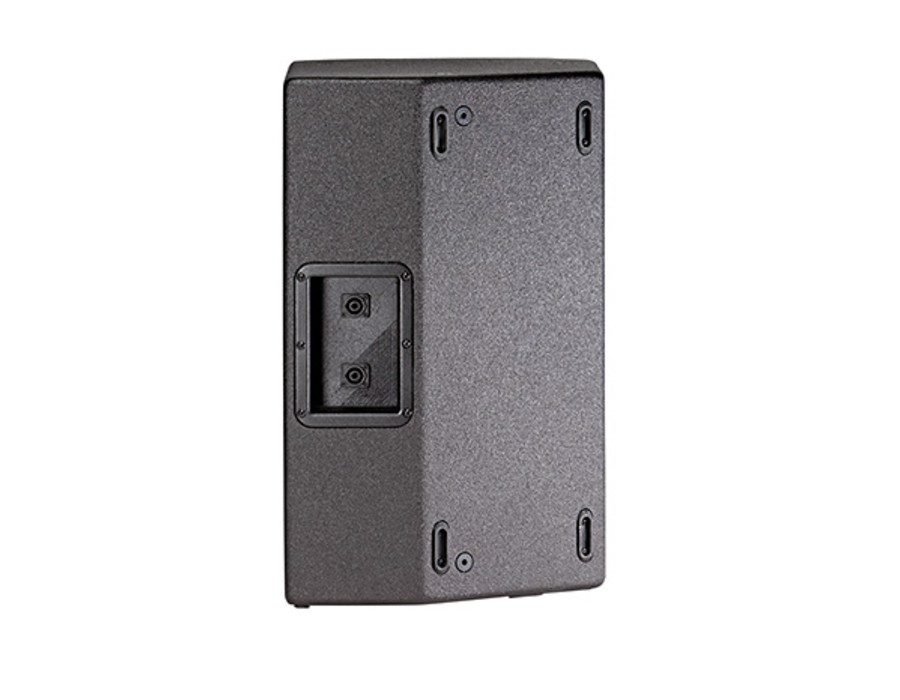

Inputs Parallel Neutrik® Speakon® NL-2 / ¼» phone combo jacks

Enclosure Duraflex coated plywood
