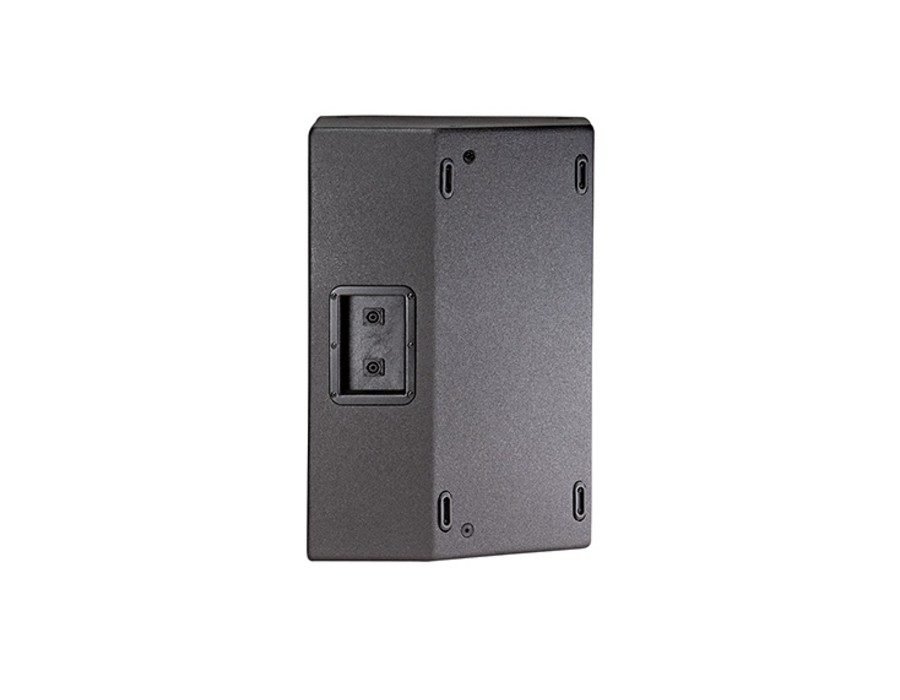

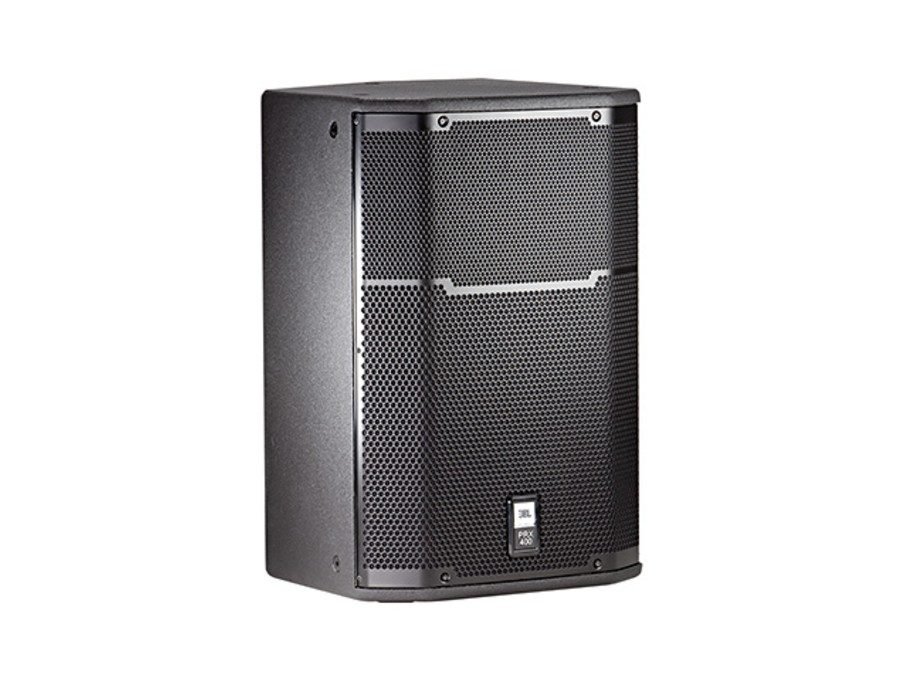

JBL PRX415M

JBL PRX415M 15″ Two-Way Stage Monitor and Loudspeaker System

PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications.

90° x 50° coverage
Dual-angle pole socket for applications requiring tripod mounting
Heavy Duty 16 gauge protective screen backed steel grille
Tough DuraFlex™ enclosure finish
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.

Applications

The PRX415M is high-power, light-weight two-way loudspeaker system offering a very high level of performance from a speaker that can be placed on a pole or standard speaker tripod stand. The PRX415M is comprised of a 380 mm (15 in) woofer which handles 300 watts (continuous) power. For the high frequencies, the 2414H-C 25 mm (1 in) polymer diaphragm compression driver is mounted to a 90° x 50° horn.

Specifications

Frequency Range (-10dB) 55 Hz – 19 kHz

Frequency Response (±3 dB) 66 Hz – 16 kHz

Coverage Pattern 90° x 50° nominal

System Sensitivity 98 dB SPL (1w@1m)

Power Rating, Pink Noise 300 W / 600 W / 1200 W(Continuous/Program/Peak)

Maximum SPL (1m) 122 dB SPL cont. (129 dB SPL peak)

Nominal Impedance 8 ohms

Dimensions (H x W x D) 650 mm x 429 mm x 457 mm (25.6″ x 16.9″ x 18″)

Net Weight 21 kg (46 lbs.)

Inputs Parallel Neutrik® Speakon® NL-2 / ¼» phone combo jacks

Enclosure Duraflex coated plywood
