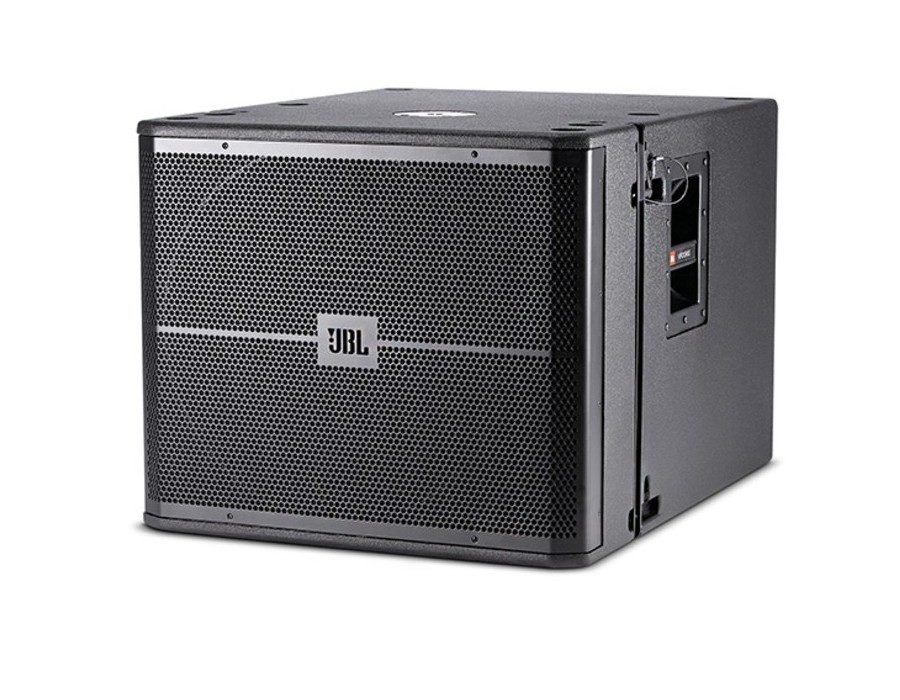

JBL VRX918S

JBL VRX918S 18 in. High Power Powered Flying Subwoofer

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18″ woofer in a front-loaded, vented enclosure.

• Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
• 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
• Large port area for reduced distortion
• 20 mm threaded pole socket for solid, secure satellite speaker mounting

Specifications

Power Rating  1500 Watts PeakLF: Dual-Bridged Technology™, Class D

Frequency Range  31 Hz – 220 Hz

Dimensions (H x W x D)  508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in)

Frequency Range (-10dB)  31 Hz – 220 Hz

Maximum Peak Output  126 dB SPL at 1m

Bandpass Nominal Impedance  LF: 2 x 2 ohms

LF Driver  1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet

Inputs  XLR with loop through

User Controls  Input Attenuator (0-16 dB)Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru.

System Processing  DSP based, resident in Input Module

System Management  DSP based limiters for mechanical and thermal protection

AC Power Operating Range  90-132 VAC or 216-264 VAC, 50/60Hz

AC Line Voltage  User selectable: 120V/240V (-15%, +10%)

AC Input Connector  Neutrik PowerCon (NAC 3MPA)

AC Loop Through Connector  Neutrik PowerCon (NAC 3MPB)

AC Current Requirements  6A per system at 120V, 3A per system at 240V

Enclosure  18 mm birch plywood.

Suspension / Mounting  Optional VRX-AF line-array frame kit or 10 mm forged eyebolts

Finish  Black DuraFlex™ finish

Grille  Powder coated, black, 16-gauge perforated steel with acoustically transparent foam

Net Weight (each)  38.5 kg (85 lb)

Optional Accessories  VRX-AF array frameSRX718S-CVR: Pull-over padded cover (works with WK-4S) SS4-BK adjustable satellite speaker pole WK-4S Caster kit

Outputs  1 x XLR

Nominal Impedance  LF: 2 x 2 ohms
