QSC AC-C2T

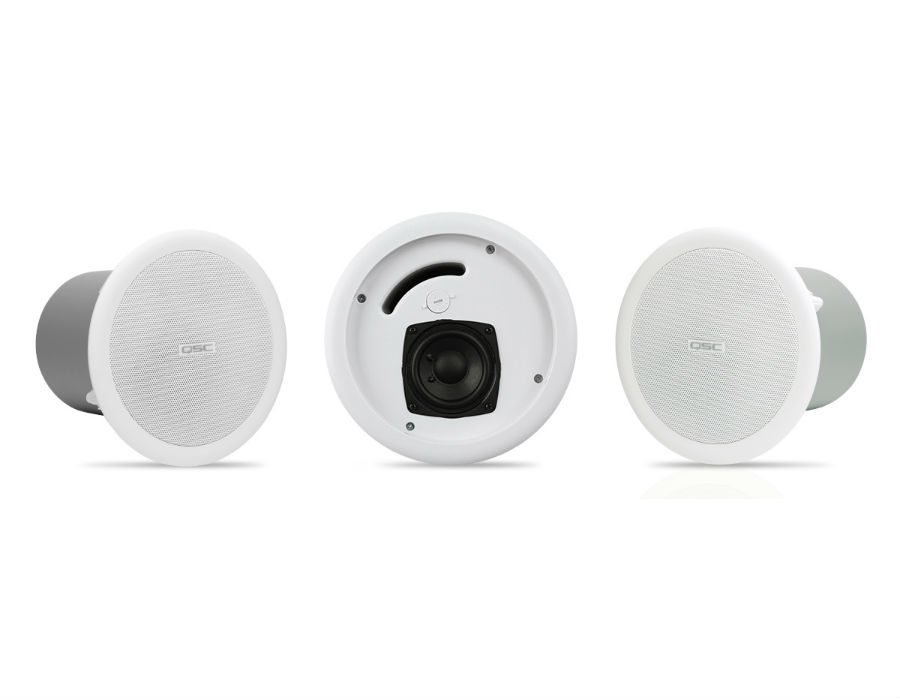

QSC AC-C2T 2.75-inch full-range, low-profile, 170° conical
- High quality 2.75-inch full-range transducer provides exceptional clarity through the critical voice range.
- Low-saturation 70V/100V transformers with 8-ohm bypass.
- 4-pole Euroblock connector for easy system wiring.
- Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
- White (RAL 9010) with UV inhibitors to match complementing QSC product families.
- Complete EASE, CAD, and BIM information available online.
Key Features
- Low-profile enclosure ensures no obstructions during installation
- High-quality 2.75″ full-range transducer provides a natural rise in high frequency extension
- Ported baffle for increased low frequency extension down to 75 Hz
- Low saturation 70 / 100 V transformers with 8 Ω bypass
- 4 pole Euroblock connector eases system wiring
- Intrinsic Correction™ voicings available via Q-SYS Platform
- White (RAL 9010)
- Complete EASE, CAD & BIM information available online
System Details |
|
Transducer | 2.75 in (70 mm), weather-treated paper cone |
Effective frequency range | 70 Hz to 20 kHz |
Broad-band sensitivity | 84 dB |
Rated noise power/voltage | 16 W / 11.3 V RMS |
Coverage angle (-6 dB) | 170° (500 Hz to 5 kHz) |
Maximum SPL (continuous / peak) | 96 / 102 dB |
Rated impedance | 8 Ω |
Transformer taps | Bypass: 16 Ω |
Input connector type | Euroblock connector with parallel output terminals |
Baffle material | ABS polymer |
Grille material | Powder coated steel |
Back can material | Powder coated steel |
Net weight | 4.2 lb (1.9 kg) |
Product dimensions | 10.35 x 3.82 in (263 x 97 mm) |
Cut-out dimensions | 9 in (229 mm) |
Ceiling capture thickness | 0.25 – 1.5 in (6.35 – 38.1 mm) |
Shipping weight | 13.8 lb (6.3 kg) |
Shipping dimensions (W x D x H) | 25.2 x 14.2 x 7.2 in |
Included accessories | Rails & C-ring for ceiling tile installation |
Optional accessories | AC-MR6 mud ring for sheet rock installation |
