Soundcraft Si Option Cards

Soundcraft Si Option Cards

By adding option cards to the Si range of digital consoles, you can interface your desk with a multitude of analogue and digital systems, whilst expanding I/O count beyond that of the standard console configuration.

Routing to and from the option cards is achieved via the ‘Patching’ functionality on the console. Further cards are always in development and will provide various solutions for interfacing onto emerging networks or devices.

The number of option cards that may be fitted varies by product model, as follows:

MADI

The MADI I/O card can establish a 64-channel MADI input and output to a remote device such as stage rack, another console or Broadcast feed to an OB. Optical inputs and outputs are provided on SC connectors and are available in single and multi-mode versions. The auxiliary interface can be used as a redundant link. A Cat5 version of the card is also available.
Part Numbers:
Single Mode Optical – 5019983.v
Multimode Optical – A520.001000SP
Dual Cat5 – A520.005000SP

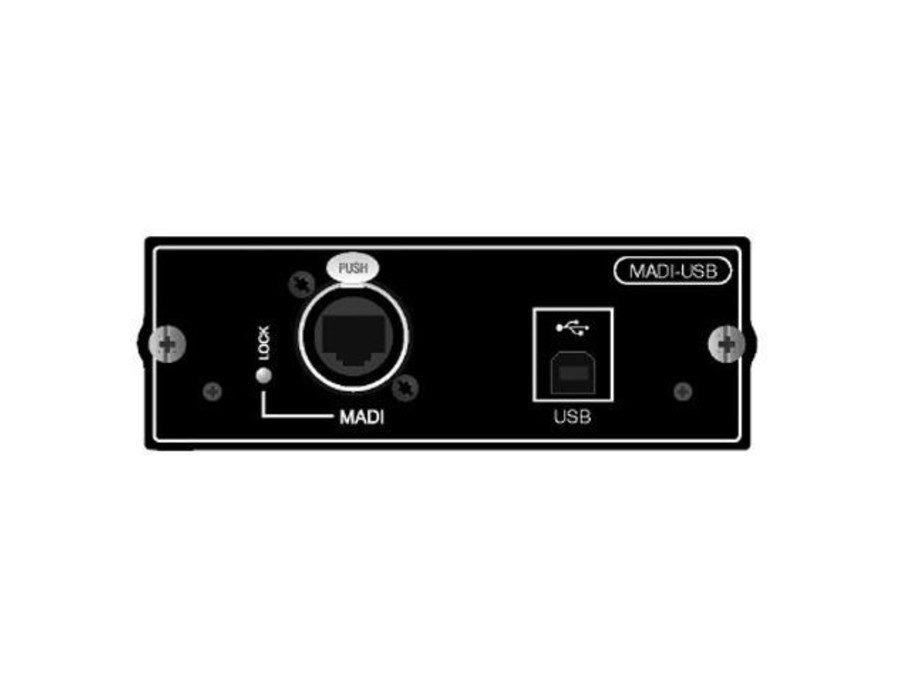

MADI USB Combo *

The Soundcraft^® MADI-USB Combo card offers digital audio connection between an Si series console and Apple^® Mac^® or PC with a USB port as well as any of the Soundcraft range of Stageboxes via Soundcraft’s proprietary Cat 5 MADI connection.
Part Numbers:
5046678.v

* PC Compatibility: the Soundcraft MADI-USB Card supports Windows 7, Windows 8 and Windows 10.
* Mac Compatibility: the Soundcraft MADI-USB Card supports Mac OS 10.7.x Lion through to 10.11.x El Capitan.

AVIOM A-NET® 16

This card allows the desk to digitally feed an Aviom A-Net Pro-16 chain. With this standard, 16 mono signals can be fed to any number of Aviom personal mixers (such as the A-16 II), connected in a daisy chain configuration. The A-Net card will be the start of the chain and provide the audio and synchronization data to the chain.
Part Number:
A520.004000SP

CobraNet®

This card allows sending and receiving of up to 32 audio channels to/from a CobraNet® network. DIP switches on the card allow setting the number of input or output channels seen by the console. Default setting is 32 output and 32 input channels. CobraNet cards used in Soundcraft consoles must operate as the conductor of the CobraNet system.
