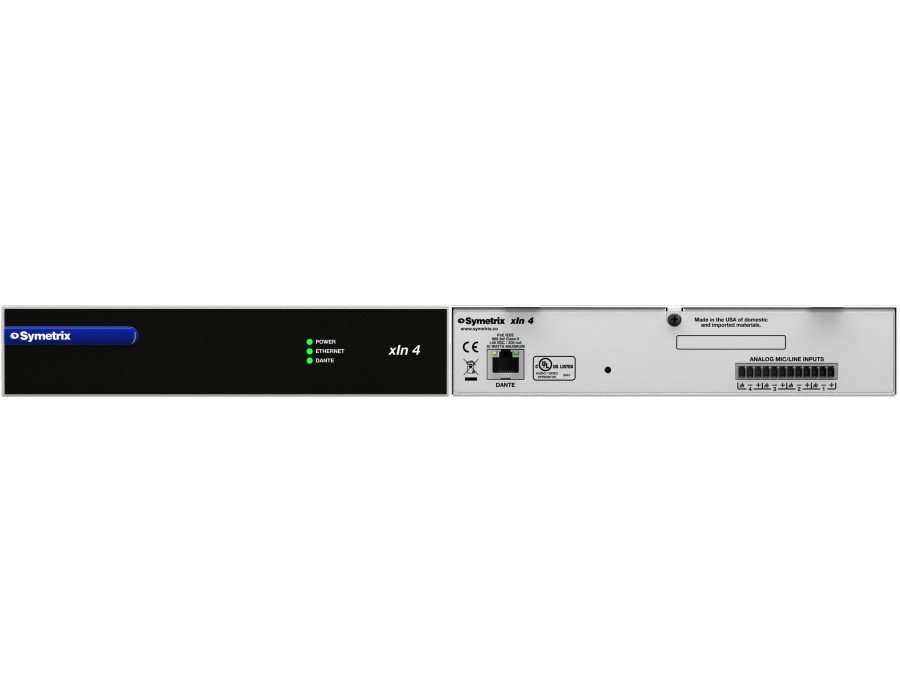

Symetrix xIn

Symetrix xIn

Expand Analog I/O Using Dante. For use with Symetrix Radius, Prism and Edge DSPs, the Symetrix Dante I/O Expanders use Composer for setup. Using Composer eliminates switches, circuit board jumpers, and mechanical adjustments as well as the need for third party software applications.

Designed for Use with Symetrix Dante-enabled DSPs
Software Setup Using Composer
Low Cost Way to Increase System Analog I/O Capacity
Ultra Low Latency – No Audible Delays
Top of the Line Specification

1/2 Rack Form Factor.
PoE – injectors included.
xIn 4 – 4 analog mic/line inputs.
xIO 4×4 – 4 analog mic/line inputs + 4 analog outputs.
xOut 4 – 4 analog outputs.
Optional rack and surface mounting kits sold separately.

Analog Inputs


Frequency Response	20 Hz – 20 kHz, ± 0.5 dB.
Channel Separation	> 111 dB @ 1 kHz, +24 dBu.
Connectors	3.5 mm Phoenix® connectors.
Number of Inputs	Four (4) switchable balanced mic or line level.
Nominal Input Level	+4 dBu with 20 dB of headroom.
Maximum Input Level	+23 dBu.
Mic pre-amp gain	0, 11.8, 24, 44 or 54 dB switchable.
Mic pre-amp EIN	< -127dB with 150 ohm source impedance.
CMRR	> 76 dB @ 1 kHz, unity gain.
Input impedance	8k Ohms balanced, 4k Ohms unbalanced.
Phantom power (per input)	+48 VDC @ 10 mA maximum.
Dynamic range	> 116 dB, A-weighted.
THD + Noise	< -100 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
Latency	0.28 mS.

Más productos Symetrix

OPCIONES	xIn 4, xIn 12
