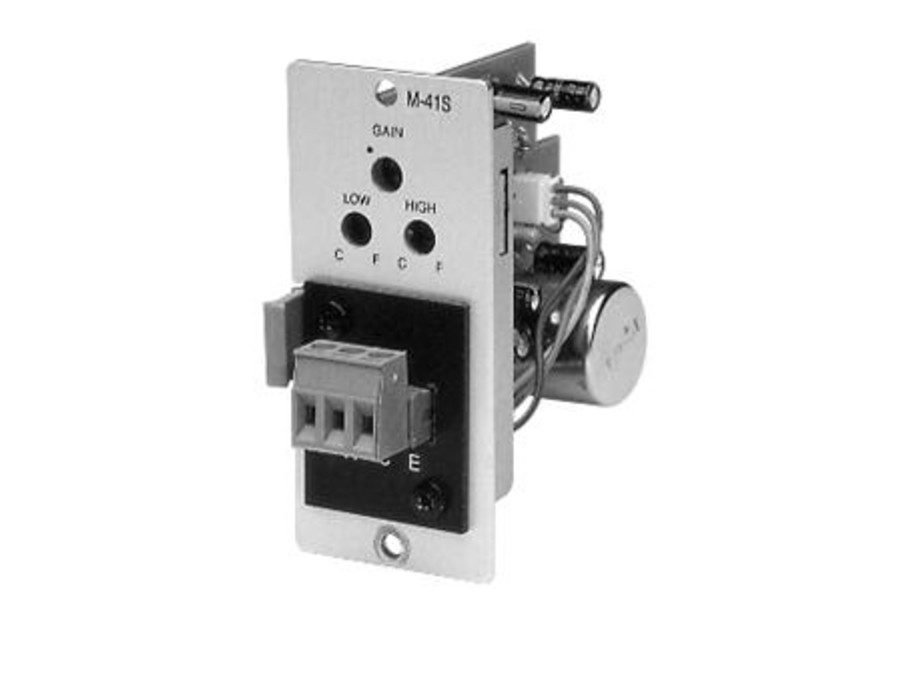

TOA M-41S

The M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier.The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.

Controls/Functions:

Gain Control

High and Low Cut Filters

Mute Send Sensitivity

Phantom Power

Performance Input: 600 tb

Input Sensitivity: -70 ~ -50 dBu

Gain (Adjustable): 32 ~ 52 dB

Maximum Input: -14 dB

Signal to Noise (S/N): -126 dBu (EIN 200 Ohm)

Physical Connector:Removable Terminal Block
