Turbosound TCS122/94

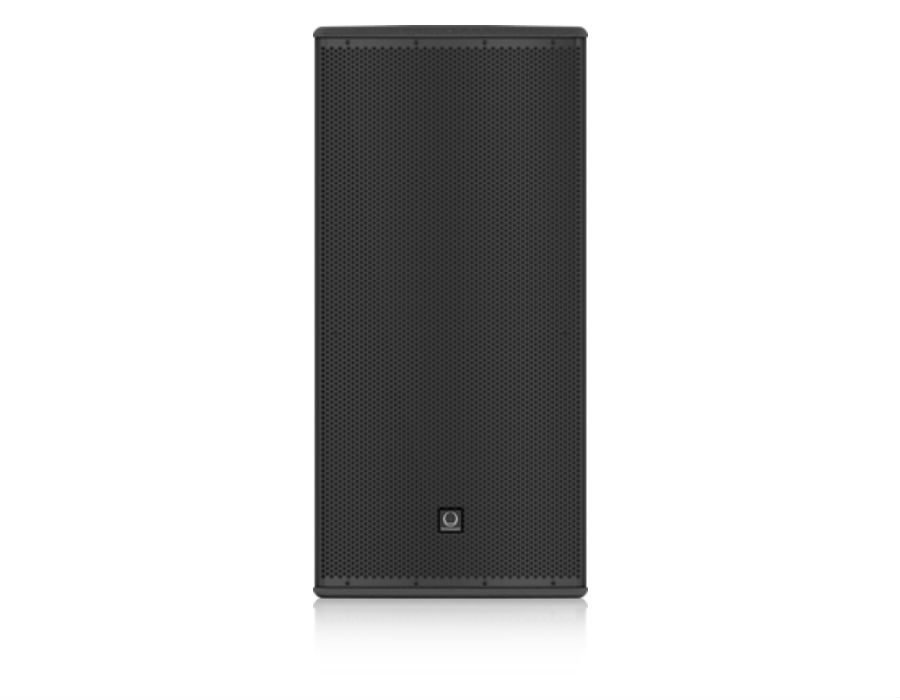

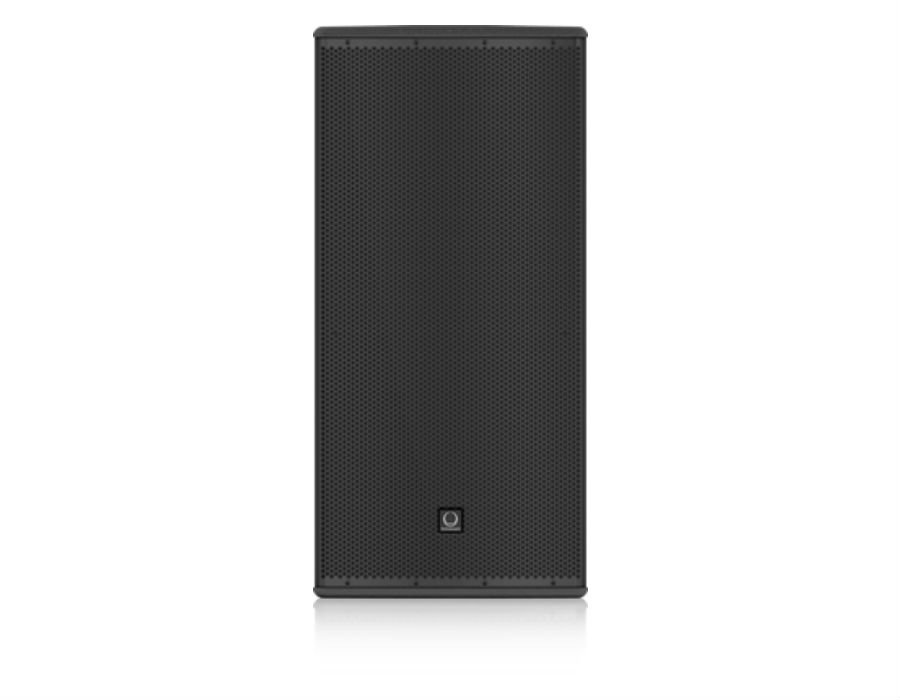

Turbosound TCS122/94 Loudspeaker

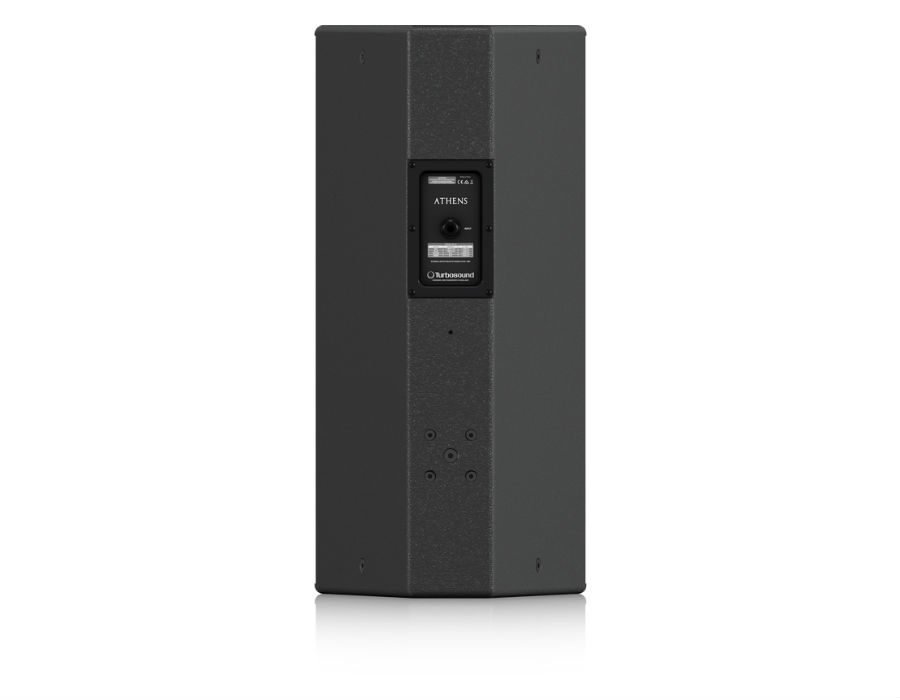

The TCS122/94 arrayable loudspeaker features a glass fibre loaded 12″ low frequency driver with inside/outside wound coil with low mass voice coil for improved transient response, and a titanium dome 1.4″ neodymium motor compression driver mounted on a 90° horizontal by 40° vertical Dendritic waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure, and bi-amp mode can be enabled by means of a rear panel switch. The rear panel connector plate carries Neutrik speakON* NL4 and barrier strip connectors for input and link connections to additional enclosures.

Arrayable 2 way full range loudspeaker for installation applications
Rotatable Dendritic waveguide with 90° H x 40° V dispersion
600 Watts continuous, 2,400 Watts peak power
Glass fibre loaded 12″ low frequency driver with aluminium voice coil for improved transient response
Titanium dome 1.4″ neodymium motor compression driver
Multiple array configurations for extended coverage
Switchable passive/bi-amp operation for flexibility of use

Trapezoidal cabinet shape enables visually unobtrusive loudspeaker arrays
Multiple internal rigging points allow bracket mount and suspension in any orientation
15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
Architecturally styled powder coated perforated steel mesh grille
Neutrik speakON* NL4 and barrier strip connectors
10-Year Warranty Program*
Designed and engineered in the U.K.

Más productos Turbosound

Color	Black, White
