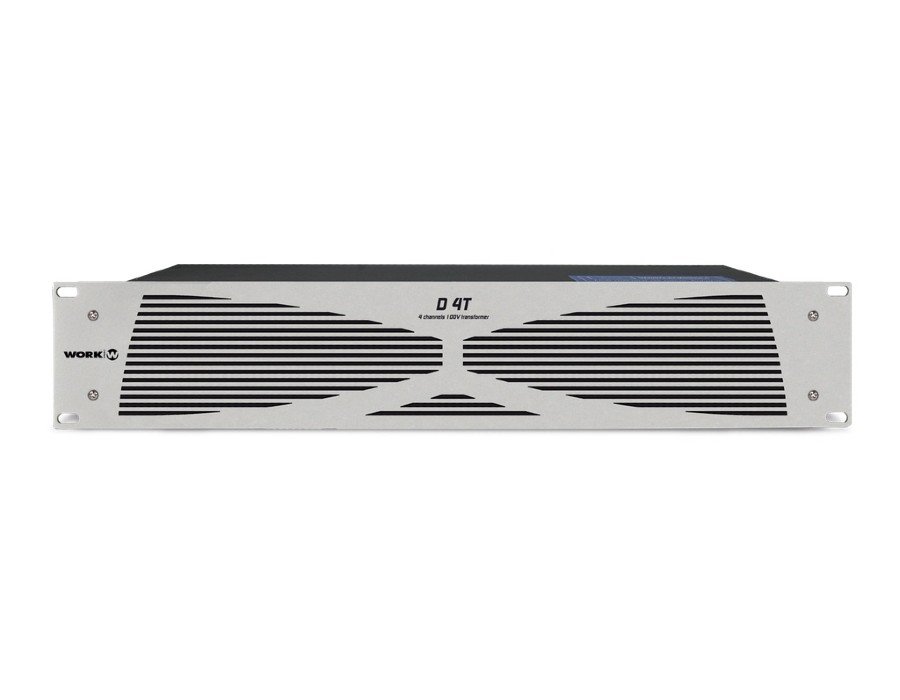

Work Pro D 4T

This 4 channels 100 V transformer is designed for fixed installations. It is composed of four transformers that make possible the use of 4 ohm impedance amplifiers in 100 V Line installations.

D 4T is an interesting solution for installations that use multi-channel, low-impedance power amplifiers. These installations usually have many zones, each one with a few number of speakers. Nevertheless, biggest zones like hallways usually require a larger number of speakers. Thanks to D 4T, it is now possible to transform up to four channels into high-impedance lines, in order to drive their respective speaker system with much lower current than is required for a low-impedance system. As a consequence, a larger number of speakers can be connected to each power amplifier output.

4 channels 100V transformer unit.
Designed to adapt low impedance amplifiers to high voltage 100V lines.
Compatible with Digiline 8 (same aestethics design) and other amplifiers.
Each transformer has a load capacity of 200 W.

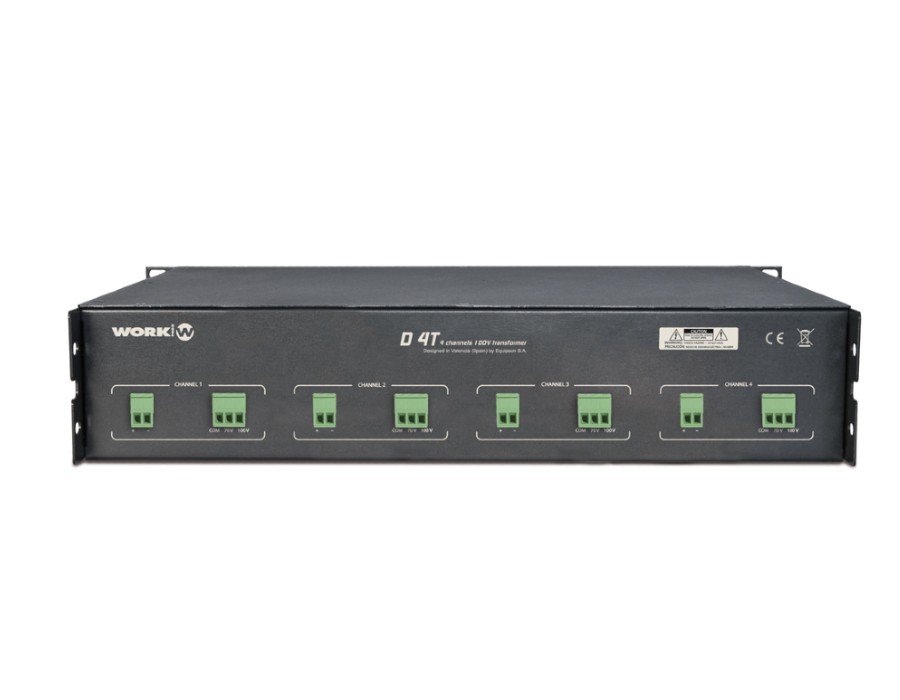

Each ouput has an independent input.
2U rack enclosure.
