Bogen BDT30A

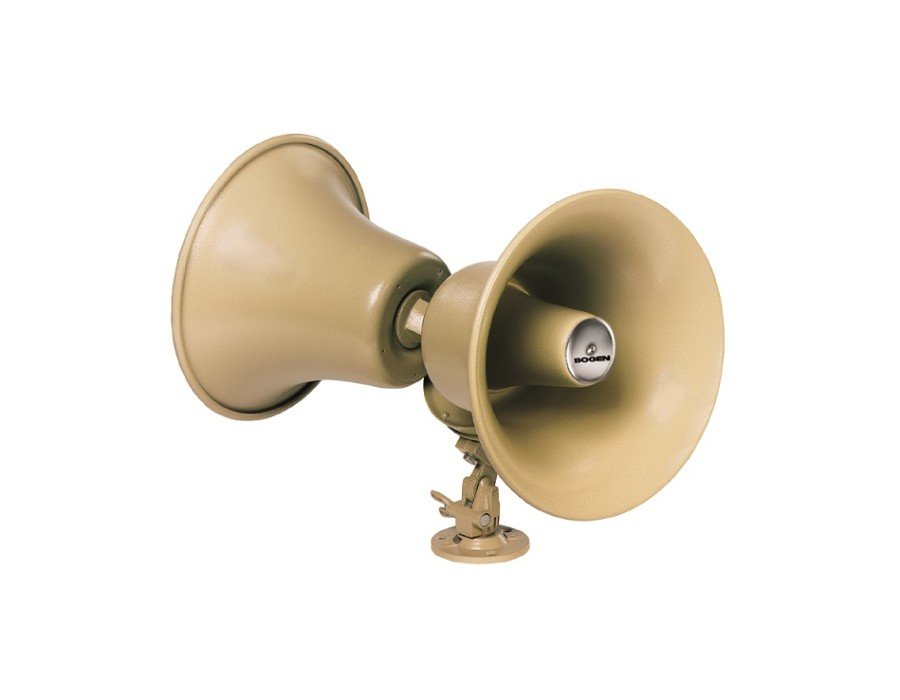

Bogen BDT30A – Bi-directional Horn Loudspeaker
The mocha Bogen Communications BDT30A is a 30W bidirectional twin-horn loudspeaker offering wide-angle coverage for paging, talkback, and security applications in work sites, schools, parking lots, warehouses, and more. Each horn delivers a dispersion angle of 100 degrees. The integrated 7-position watts/impedance switch allows simple tap configuration for operation with 25V or 70V constant-voltage systems.
With a weatherproof design, metal construction, and a textured enamel finish, it ensures reliable durability indoors and outdoors. A protective cover shields the screw terminals and provides cable strain relief to inhibit damage to the connections. Easily install the BDT30A via its all-purpose mounting bracket or a separately available clamp or strap.
• Twin reentrant horns for bi-directional projection Features • High intelligibility and efficiency • Ideal for both one-way and talkback paging applications • Weatherproof • Sturdy, all-metal construction • 30 watts max. at 70V operation or 15 watts max at 25V operation • Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8 watts • Rotary tap impedance selector switch • Screw terminals make installation fast and easy • For indoor and outdoor use • Uniquely designed all-purpose mounting bracket for simple installation • Self-aligning, field-replaceable diaphragm for easy maintenance • Limited lifetime warranty • Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately) • Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately) • Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
