BSS Analog Output Card

TARJETA DE SALIDA ANALÓGICA

PRESENTACIÓN: PIEZA

Categoría: Etiqueta:


Descripción

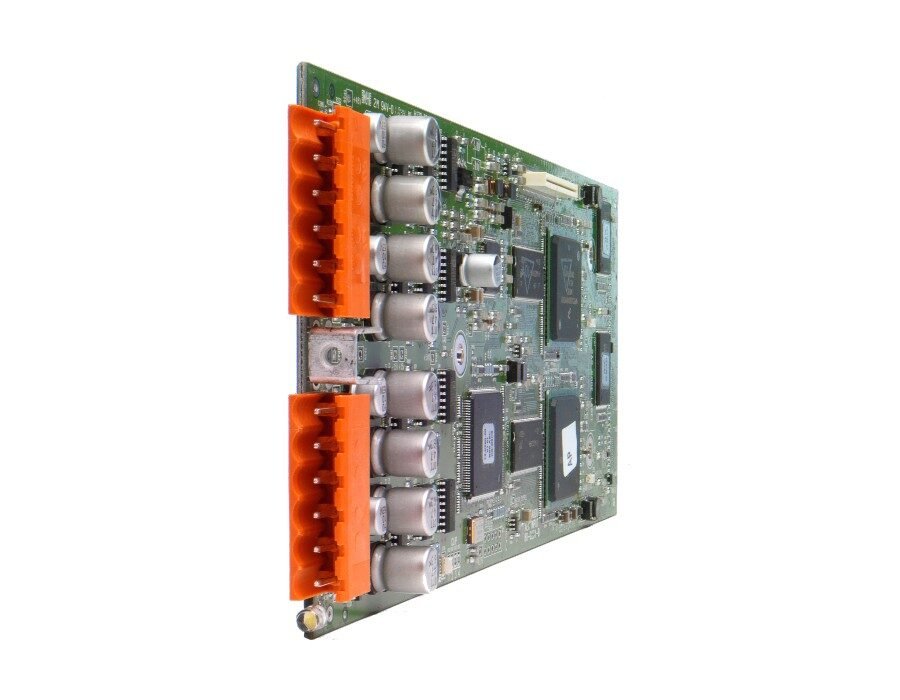

BSS Analog Output Card

The Soundweb London Analog Output Card is designed to populate any of the four card slots on Soundweb London BLU-800, BLU-805, BLU-806, BLU-320, BLU-325, BLU-326, BLU-160, BLU-120, BLU-80, BLU-32 and BLU-16 devices. This analog card enables Soundweb London devices to send line level signals.

The Analog Output Card has two Combicon connectors which are used as follows:

  • Connector 1
    • Balanced / Unbalanced Audio, Channel 1 – Mic/Line
    • Balanced / Unbalanced Audio, Channel 2 – Mic/Line
  • Connector 2
    • Balanced / Unbalanced Audio, Channel 3 – Mic/Line
    • Balanced / Unbalanced Audio, Channel 4 – Mic/Line
