BSS BLU-6

BSS BLU-6

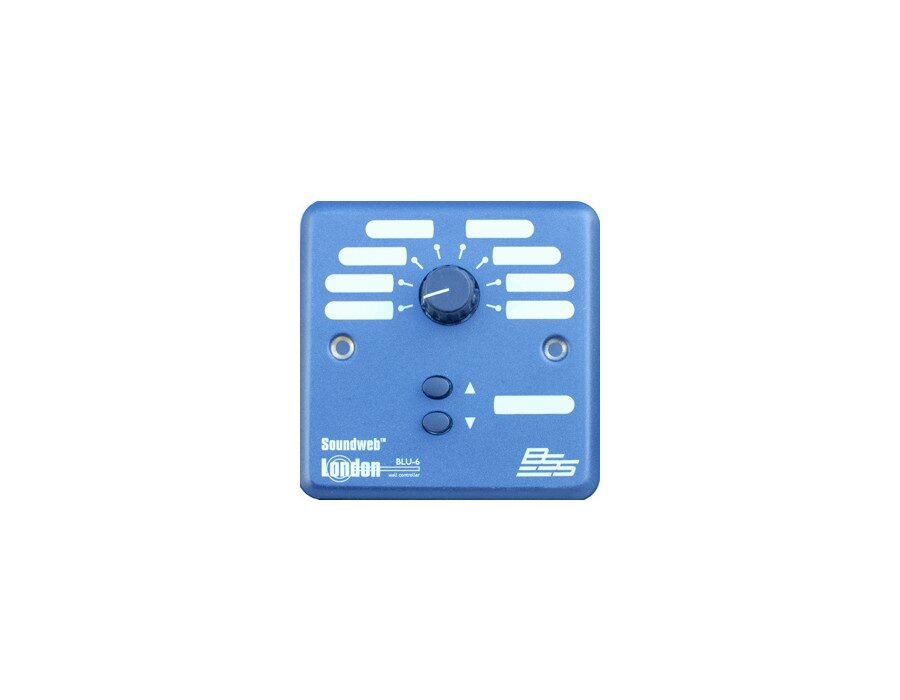

The BLU-6 wall panel is a simple controller which allows the designer to provide level control and source selection or preset recall in a simple wall-mounted panel.

These controllers connect to the control ports on the rear of any BLU-16, BLU-32 or BLU-80 device.

The BLU-6 offers an eight-way switch and a pair of spin or up/down buttons, enabling the same level parameter to be mapped onto other controllers preventing a jump in audio level when the control is adjusted

The switches have blank areas for marking the switch functions, either directly onto the white area, or on self-adhesive labels.

OVERVIEW:
The Soundweb London BLU-3, BLU-6, SW9012US and SW9015US Wall Controllers are simple analog wall controllers which provide a cost-effective and familiar interface to even the most involved audio / video system.

The BLU-3 and BLU-6 are designed to be installed in a single-gang UK back box, while the SW9012US and SW9015US are designed to be installed in a single-gang US back box. Electronically, the BLU-3 and SW9012US are identical and the BLU-6 and SW9015US are identical.

The BLU-3 and SW9012US feature a five position source / preset selector and a level control. The BLU-6 and SW9015US feature an eight position source / preset selector and an up / down pair of momentary buttons

KEY FEATURES:
9 Cost-Effective Control Solution
9 Familiar Control Interface
