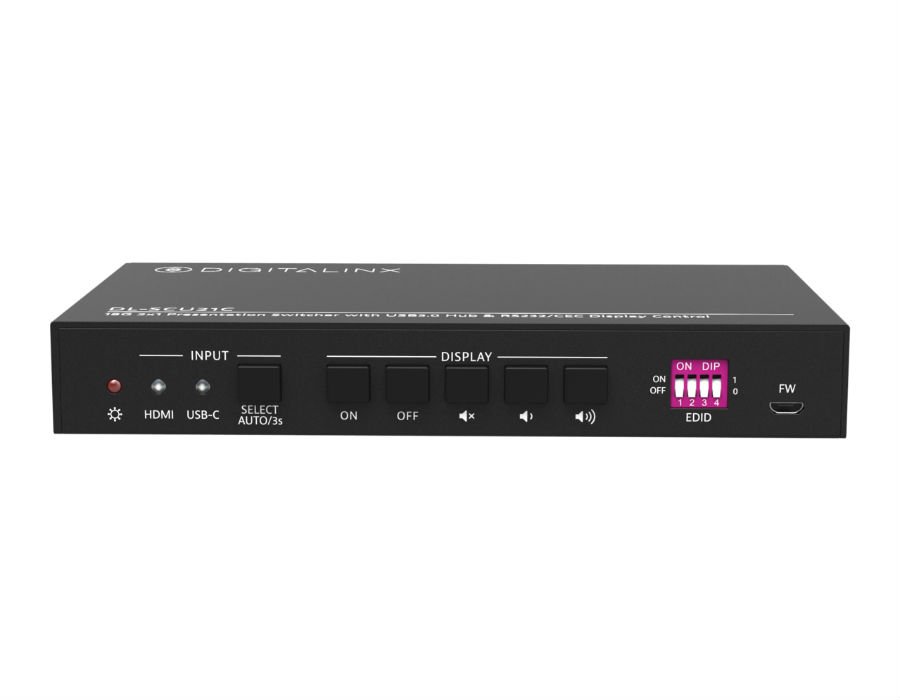

Intelix DL-SCU21C

Intelix DL-SCU21C

4K60 18G HDMI & USB-C auto switcher with USB 3.0 switching hub, audio de-embed and display control

The DL-SCU21C is a 2×1 HDMI 2.0b auto switcher featuring one HDMI input, one USB-C input and one HDMI output. The USB-C input supports video, data (USB host) and power charging up to 40w. There is a built in 2 port USB 3.0 hub that is backwards compatible with USB 2.0 and USB 1.1 formats. This switcher supports video resolutions up to 4Kx2K@60Hz 4:4:4, HDR, and multichannel audio. The USB-C input supports Display Port over Alternate Mode (ALT-DP), any laptop computer used with this device must support this mode.

NOTE: When using a laptop with USB-C ports, check the laptops capability for supporting ALT-DP for video, data and power charging, not all laptops may support all three functions at once with external devices. Also be sure to use a USB-C cable that supports all three functions. Not all USB-C cables support all functions so please select carefully

In addition to passing native EDID information from the display to an input on the switcher, there are multiple built-in EDID settings to choose from to simplify an installation. The switcher will de-embed 2 channel analog audio for audio reinforcement which is de-embedded from the HDMI output. The devices switching functions can be controlled via RS232 and front panel control buttons can be configured to control 3rd party devices connected to the switcher such as a TV display via CEC or RS232.

When in auto-switch mode, the switcher will switch to an input as soon as a new source is connected. When the active source is removed, the switcher will select the prior source connected. When switching between HDMI and USB-C video inputs, the USB B Host port will follow HDMI and USB-C will act as a USB host disengaging USB B Host control.

• 1 HDMI input, 1 USB-C input and 1 HDMI output; USB 3.0 hub built in
• When switching to HDMI input, the USB-B host is turned on and is used to share USB devices connected to the USB hub
• When switching to USB-C, USB host is switched to USB-C to share USB devices connected to the USB hub
• USB-C supports ALT-DP video, data and power charging to 40 watts
• Controllable via front panel buttons & RS232
• Built-in EDID management
• Supports HDMI 2.0 and HDCP 2.2
• Balanced analog audio for audio de-embedding.

Applications

• Perfect for bridging presentation spaces and video enabled spaces into one seamless experience
• Ideal for bringing your own laptop into a video enabled space to use the USB peripherals in the room such as USB mic and camera
