Pure Resonance Audio MA120BT

Featuring built-in Bluetooth and 70V/100V transformer technology, the Pure Resonance Audio MA120BT mixer amplifier provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. This mixer-amp is an easy choice for any application because of its combination of balanced and unbalanced inputs, 70V, 100V, 8 ohm or 4 ohm outputs, and compact size and interface.

Commercial Audio 120W Mixer Amplifier for Paging and BGM 70V 100V 4 or 8 Ohm Outputs

Versatility

This 7-channel mixer-amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70 Volt, 100 Volt, 8 ohm or 4 Ohm outputs, and compact size and interface are all combined to make this mixer-amp an easy choice for any application in need of background music and general announcements. It is perfect for use in restaurants, retail stores, offices, schools, hospitality, etc. and is equipped with paging and MOH (Music On Hold).

Flexibility

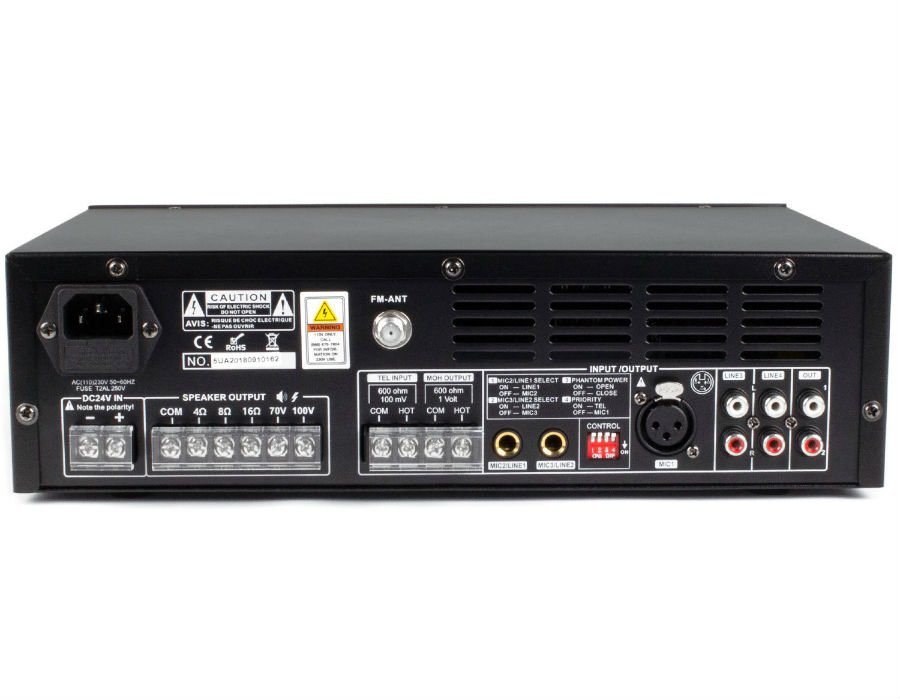

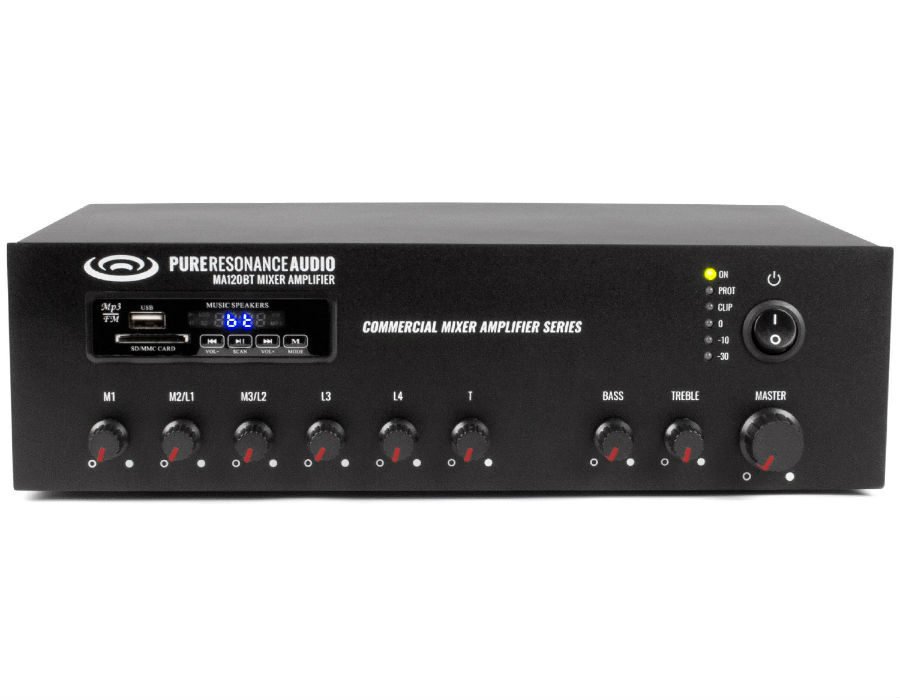

The on-board plug-in play MP3 player accepts SD cards and USB thumb drives that can be plugged in on the front panel. The unit includes RCA inputs and RCA line-level outputs, a telephone input with VOX priority and a MOH (Music on Hold) output, as well as an XLR input with phantom power. The IR remote for MP3, FM Radio and Bluetooth provides freedom and flexibility allowing full control, even from across the room.

Bluetooth-Enabled

This compact public address amplifier also supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets or mobile phones, enabling anyone to walk-in and link up with their Bluetooth Wireless Connection to instantly play music or any sound source file.

SPECIFICATIONS

Rated Power Output: 120W

Speaker Outputs: 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms

Connectors:
Mic 1 input by balanced XLR with phantom power
Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
Line 1-2 inputs by RCA; Line output by RCA

Attenuation Microphone: 1-3, line 1-2 and MP3/FM Radio, bass/treble and master

Input: MIC 1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA

Line Out: 0.775 (0dBV)

Frequency Response: 60Hz – 15kHz (±3dB)

S/N Ratio: Line ≥ 85dB, Mic≥ 72dB

THD: Less than 0.5%

Protection: Short-circuit, clip, overload and high temp protection

Power Consumption: 60W

Power Supply: 115V 60Hz & 24V DC

Dimensions (H x W x D): 3.5″ (88 mm) x 11.8″ (300 mm) x 10.8″ (275 mm)

Weight: 6.6 lbs (3 kg)
