For applications requiring 600 ohm line-matching. Choose from two connector types: female XLR or screw terminal.
- Performance Input: 600 ohm
- Input Sensitivity: -16 dBu
- Gain (Adjustable): -2 dB (fixed)
- Maximum Input:+20 dB
- Physical Connector: L-01F: XLR-F or L-01S: removable terminal block
– For Applications Requiring 600 ohm Line Matching.
– Transformer Isolation (600 ohms) minimizes ground loop problems when connecting remote equipment (greater than 15 feet)
– Connector: removalble terminal block

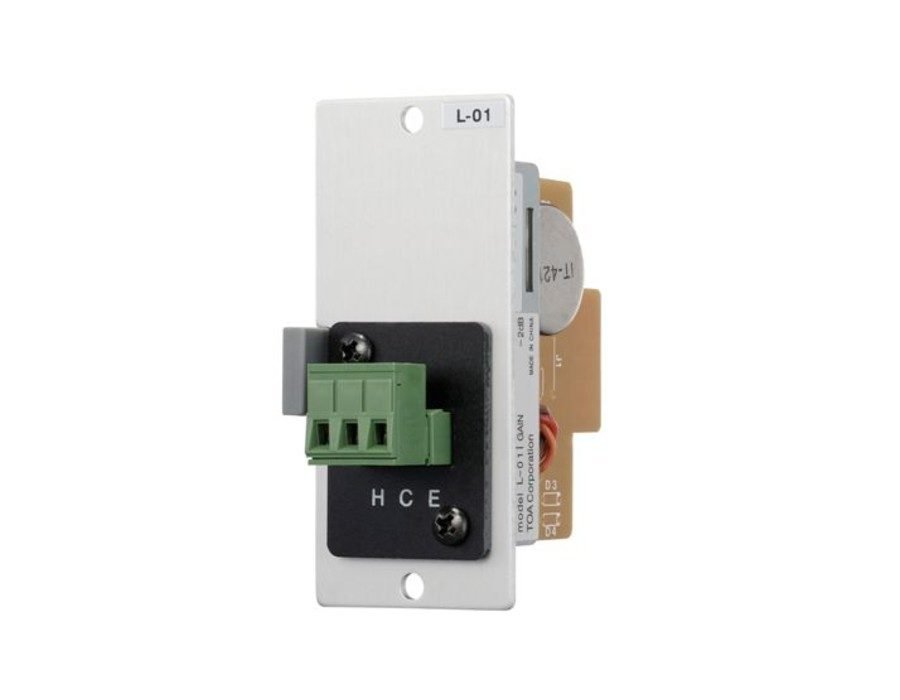

The L-01F is a line input module to be used in conjunction with the 900 series components and other TOA’s equipment. It has a transformer balanced line matching input with female XLR type connector.A
