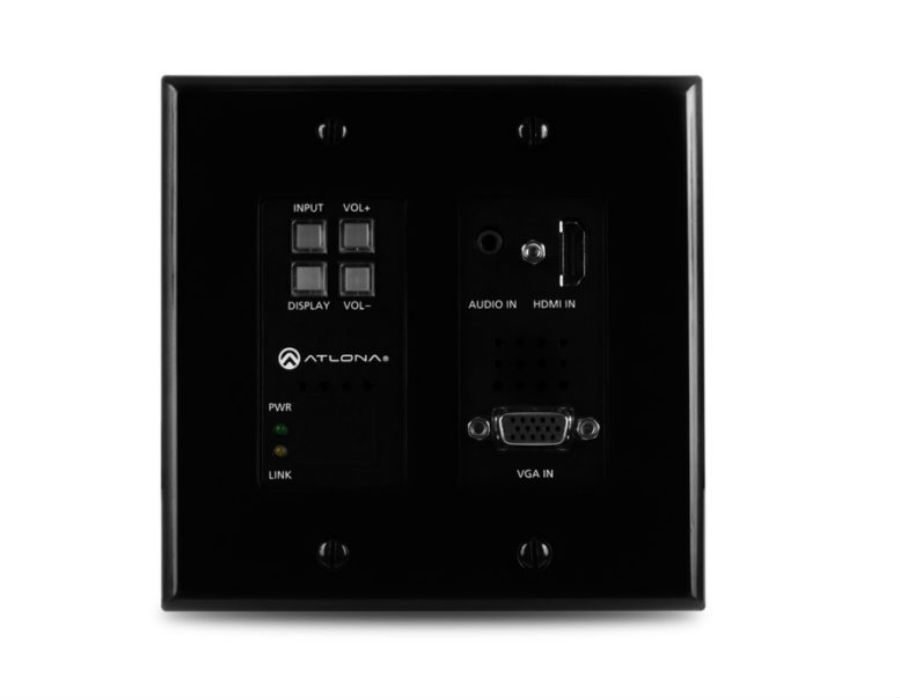

The Atlona AT-HDVS-200-TX-WP-BLK is a 2×1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. It features a US two-gang, Decora-style wallplate form factor. The HDVS-200-TX-WP-BLK ships with interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP-BLK is designed for use with the AT-HDVS-200-RX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).
All-in-One Switcher, Controller, and Extender
The HDVS-200-TX-WP-BLK combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-WP-BLK incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
Automatic Display Control
The HDVS-200-TX-WP-BLK provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-WP-BLK can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-WP-BLK forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-WP-BLK display control capability can also be triggered by an external control system.
