Atlona AT-OME-TX21-WP-E


Wallplate Switcher for HDMI and USB-C


Categoría: Etiqueta:


Atlona AT-OME-TX21-WP-E

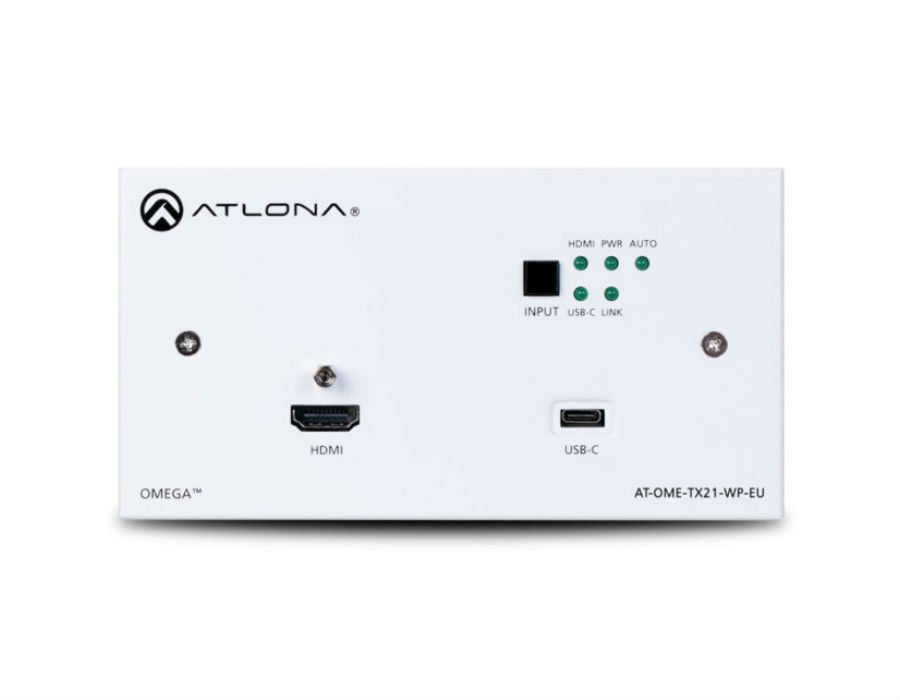

The Atlona AT-OME-TX21-WP-E is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It is designed for commercial installations in Europe. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-TX21-WP-E includes interchangeable EU and UK faceplates and brackets. The USB-C input is ideal for AV interfacing with Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The OME-TX21-WP-E is HDCP 2.2 compliant. It is designed for use with Omega™ Series receivers and switchers, select HDVS Series receivers, the AT-UHD-EX-100CE-RX-PSE receiver, and other Atlona switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

  • Two-gang enclosure for EU and UK wallplate openings – interchangeable EU and UK trim kits
  • 2×1 HDBaseTTM switcher with HDMI® and USB-C inputs
  • Ideal for the AT-HDVS-200-RX or AT-HDVS-SC-RX scaling receivers, AT-UHD-EX-100CE-RX-PSE receiver, and Atlona HDBaseT-equipped switchers
  • HDBaseT transmitter for AV, power, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE)
  • Remotely powered via PoE (Power over Ethernet)
  • Automatic input selection and automatic display control
  • TCP/IP and RS-232 control
