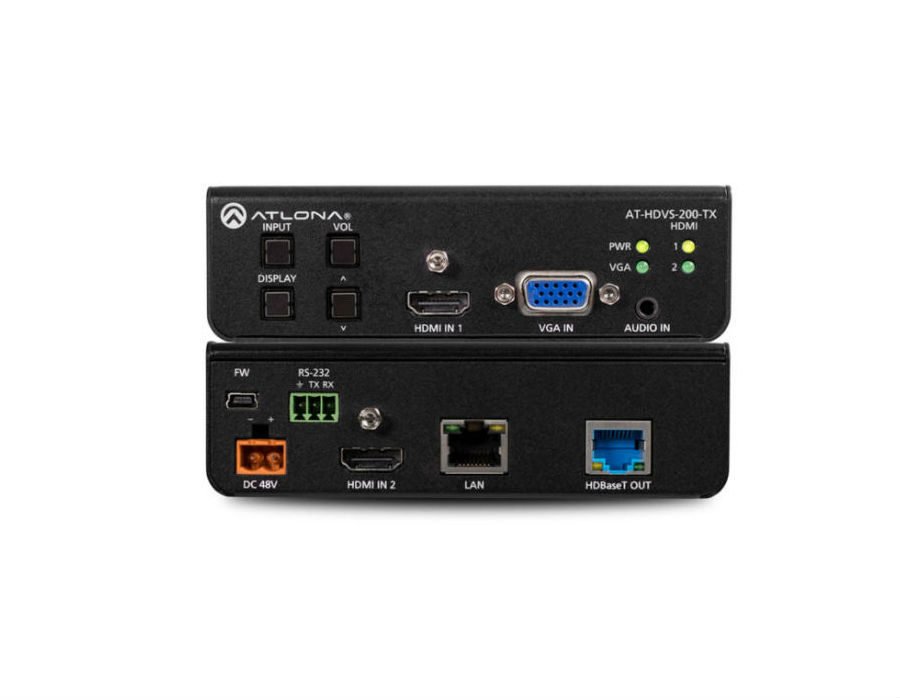

Atlona AT-HDVS-200-TX

Three-Input Switcher (HDMI and VGA)

PRESENTACIÓN: PIEZA



Categoría: Etiqueta:


Descripción

Atlona AT-HDVS-200-TX

The Atlona AT-HDVS-200-TX is a 3×1 switcher and HDBaseT transmitter with two HDMI inputs and a VGA input with audio. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to any of the video inputs and embedded for HDBaseT transmission. The HDVS-200-TX is designed for use with the AT-HDVS-200-RX HD scaling receiver or AT-OME-RX21 4K scaling receiver (also available as part of the AT-OME-RX21-KIT), but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver or AT-HDVS-SC-RX premium scaling receiver. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

All-in-One Switcher, Controller, and Extender

The HDVS-200-TX combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Surface mounting brackets are provided with the HDVS-200-TX for easy under-table, furniture, or on-wall installation.

Automatic Display Control

The HDVS-200-TX provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

  • 3×1 HDBaseTTM switcher with two HDMI® inputs and one VGA input
  • Ideal for the AT-OME-RX21 4K scaling receiver – also available as part of the AT-OME-RX21-KIT
  • HDBaseT transmitter for AV, Ethernet, power, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE, AT-HDVS-SC-RX, or AT-OME-RX21 receivers)
  • Remotely powered via PoE (Power over Ethernet)
  • Automatic input selection and automatic display control
  • Front panel input selection, display on/off, and volume control
  • TCP/IP and RS-232 control
