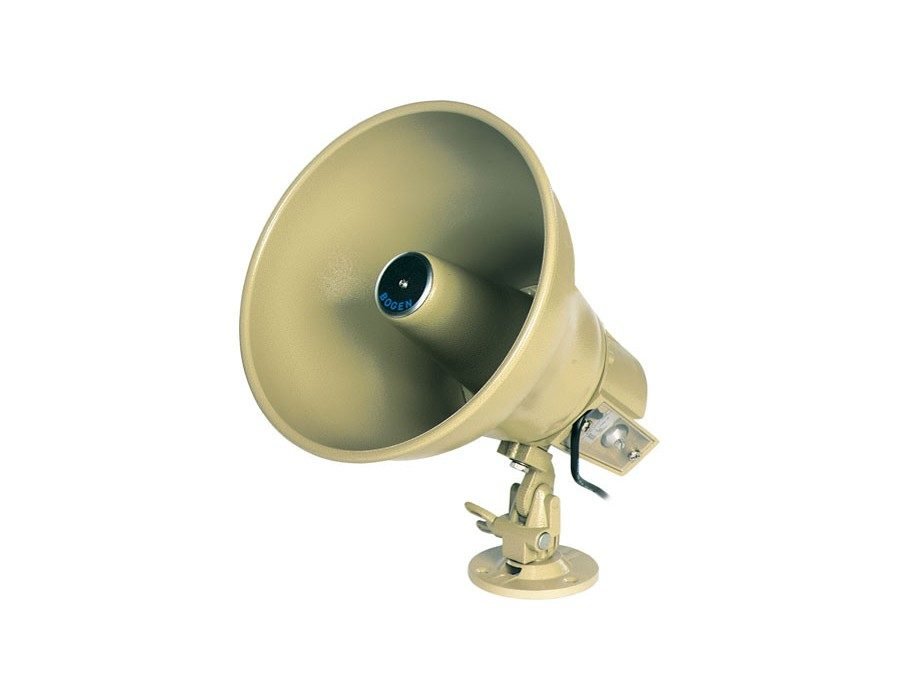

Bogen AH5A
The mocha Bogen Communications AH5A is a 5W amplified paging horn offering extended frequency response and versatile positioning for paging, talkback, background music, and security applications in work sites, schools, parking lots, warehouses, and more. With a built-in amplifier, it delivers a 5W output, a maximum SPL of 116 dB, and a frequency response of 275 Hz to 14 kHz while maintaining low current draw. It operates via a 24 VDC power source.
Its weatherproof, all-aluminum housing ensures reliable durability indoors and outdoors, and can be precisely tilted and swiveled via the universal mount. Banding slots allow mounting to a beam or pillar, and alternative mounting options are supported via separately available accessories. The screwdriver-adjustable volume control is protected by a plastic cover, which also provides cable strain relief. The 4-conductor cable is color-coded to ensure simple wiring to audio and power sources.
Universal mounting brackets permit adjustment in vertical and horizontal planes; banding slots are provided for ease in securing the horns to beams and pillars. Quick connections to audio and power sources are easily made with the supplied 4-conductor, color-coded cable. A plastic cover protects the volume control and provides cable strain relief.
- 5W and 15W models
- Weatherproof housing: all-aluminum construction
- Screwdriver-adjustable volume controls
- Tilt & swivel mounting brackets for vertical or horizontal positioning
- Textured mocha enamel finish
- Banding slots for easy mounting on beams and pillars
- 4-conductor connection cable included.
