Bogen MIC2S

Bogen MIC2S

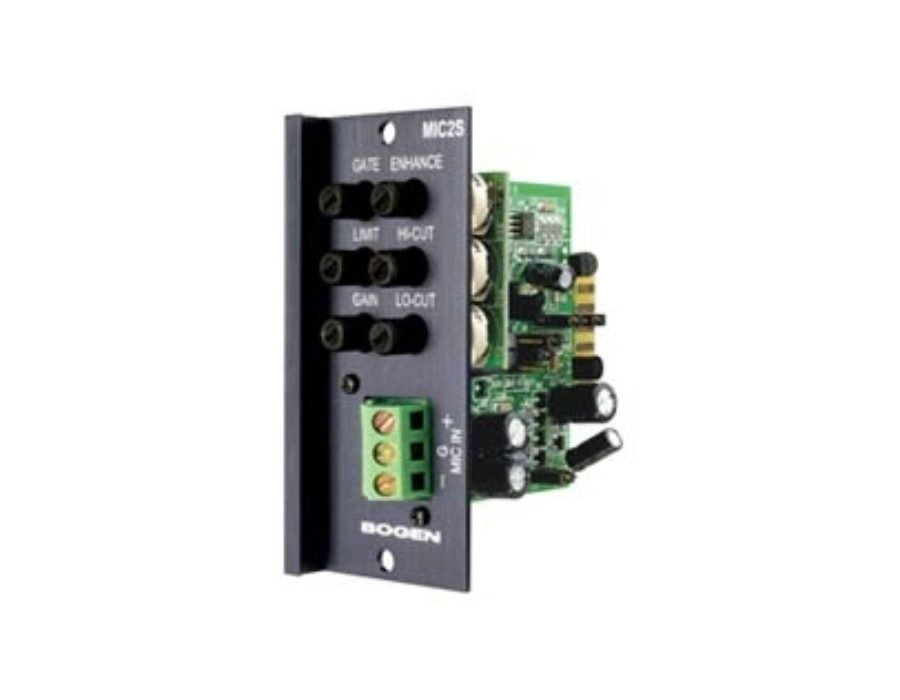

Bogen MIC2S Microphone Electronic-Balanced (Screw Terminal)

The MIC2S from Bogen is a Electronically-Balanced Microphone Input Module with a screw terminal connector. This module has 24V phantom power and is bus assignable. The MIC2S also has voice enhancement controls. For Bogen M-Class and Power Vector amps. Must be a reseller to purchase this product.

The module has a VOX/gating circuit to control muting of lower priority modules and its internal gating circuit with a threshold control. It has a built-in limiter, with a threshold control, to limit the maximum output level of the module. The module has bass and treble controls with cut only of 10 dB at 100 Hz and 3 kHz, respectively. The module also has a voice enhancement control for improving voice intelligibility. The module’s output is assignable to either or both of two mixing buses.

The MIC2S module has an electronically-balanced input with screw terminal connector. It has an interface with low-impedance dynamic microphones. It also has an interface with electret condenser microphones and an internal 24V DC phantom power supply to provide the bias supply that is enabled by a PCB jumper.

• Gain/Trim control
• High Cut/Low Cut controls
• Voice Enhancement control
• Noise gate w/Threshold control
• Limiter w/Threshold control
• 24V Phantom power
• Mute send & receive
• 4 Priority levels
• Bus assignable
• Electronically balanced
• Screw Terminal
