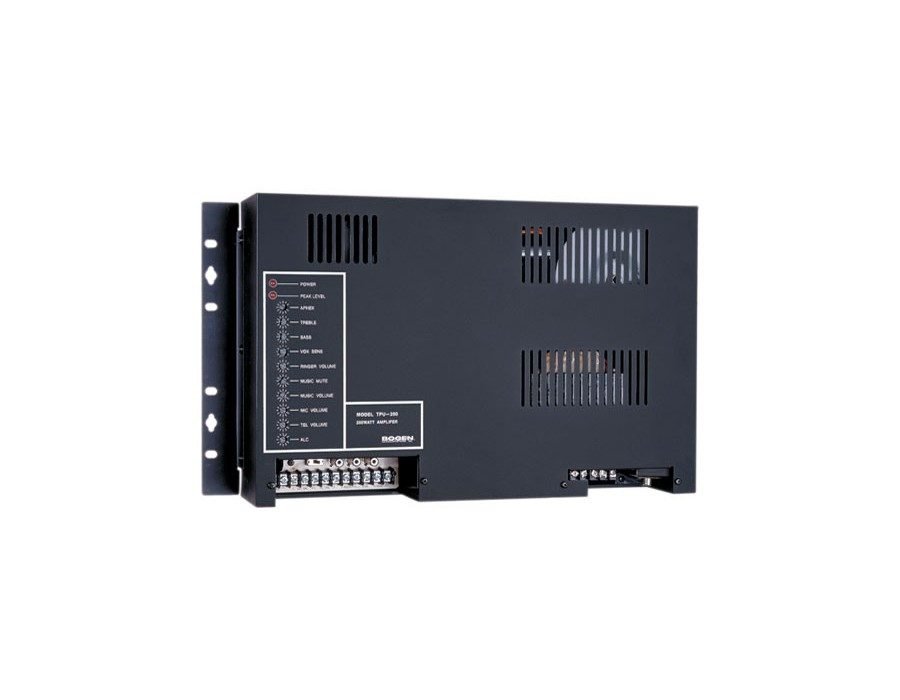

The Bogen Communications TPU250 Telephone Paging Amplifier enables paging from a telephone and/or microphone. The amplifier ties into the commercial, 70V PA system and also provides RCA inputs for background music. The amplifier also features voice-activated, variable level, music mute with fade back whenever pages occur. Additional features include night ringer and jacks for bridging two TPU amplifiers.

• 35, 60, 100, and 250-watt models
• Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
• Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
• Music input (RCA jack or screw terminals)
• Page from telephone and/or microphone
• Signal-activated paging channel automatically mutes background music

Bogen models TPU35B, TPU60B, TPU100B, and TPU250 are wall-mounted telephone paging amplifiers
rated at 35, 60, 100, and 250 watts, respectively. All models can also be rack-mounted*. These TPU
amplifiers permit paging from telephone and/or microphone; music input through an RCA jack or screw
terminals; and voice-activated, variable level, music mute with fade back after page. These TPU amps
include a night ringer which sends an electronic ringing tone signal through all speakers, alerting
personnel of incoming calls. Jacks are also provided to bridge two TPU amplifiers to double the number of
inputs and output power.

• Compact wall-mount design
• Inputs for 600-ohm balanced telephone line and background music
• 25V, 70V, or 8-ohm output
• Built-in night ringer triggered by external contact closure
• Integral automatic level control (ALC) circuit
• Signal-activated music muting circuit
• Individual controls for tone, page volume, background music volume, night ringer volume
• Lo-cut switch
• LED overload indicator
