The Bogen Communications ANS501 Ambient Noise Sensor is designed for use with paging systems. The sensor monitors the ambiance levels in environments where the levels are constantly fluctuating. The sensor then compensates for the ambiance level whenever paging occurs. This results in comfortable, audible pages no matter how noisy or quiet the environment. The ANS501 sensor features adjustable threshold controls and ANS500M remote microphone.

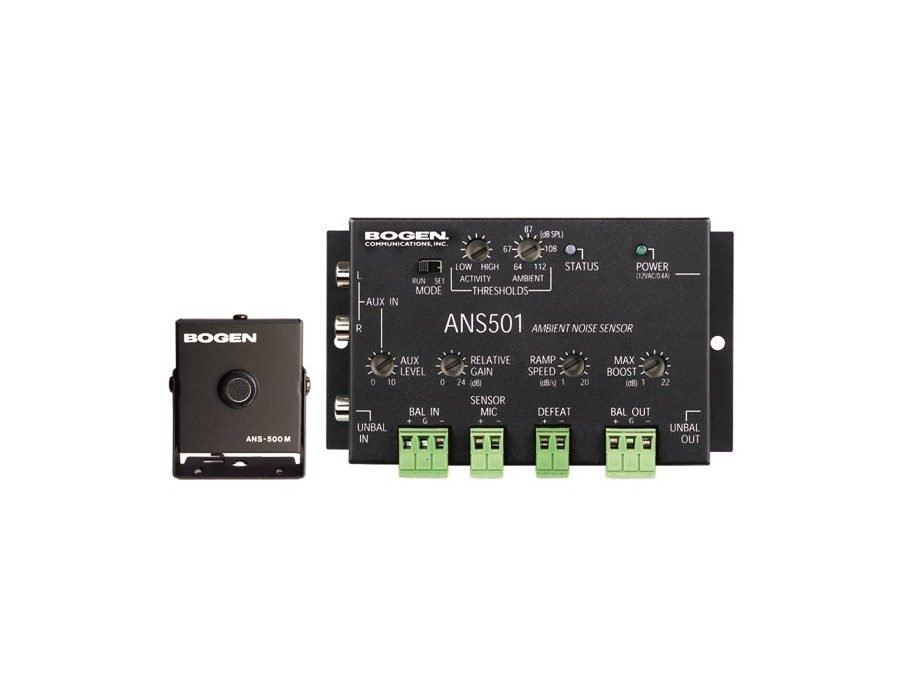

The Bogen Ambient Noise Sensor system is designed to monitor continuously changing ambient noise levels and electronically adjust the level of a page announcement and/or background music so intelligibility is maintained.The system consists of the control module (Model ANS501), a microphone module (ANS500M), and a power supply. The system ensures that page announcements and music are audible even during periods of high noise levels by continuously monitoring the ambient noise level through a microphone module located in the subject area and adjusting the paging signal level into the system’s amplifier.
• Consists of an ANS501 control unit, an ANS500M microphone module, and a power supply • Balanced input and output • Unbalanced input and output • Unbalanced stereo AUX inputs (summed mono) • AUX inputs bypass gain control feature • Remote defeat connections (to disable level boost) • Automatically adjusts level of page announcements • Run/Set mode switch • ANS501 can be wired in between preamp and power amp or to amplifier insert jacks • Maximum boost;activity threshold; relative gain; AUXinput level; ramp speed; and ambient MIC input threshold controls • Supports up to four microphones wired in parallel • Microphone wire run can be up to 2,000 feet with no appreciable loss of signal • Microphone module includes an adjustable mounting bracket for precise positioning • Powered by a 12V wall-mounted power supply that operates from 120V AC
