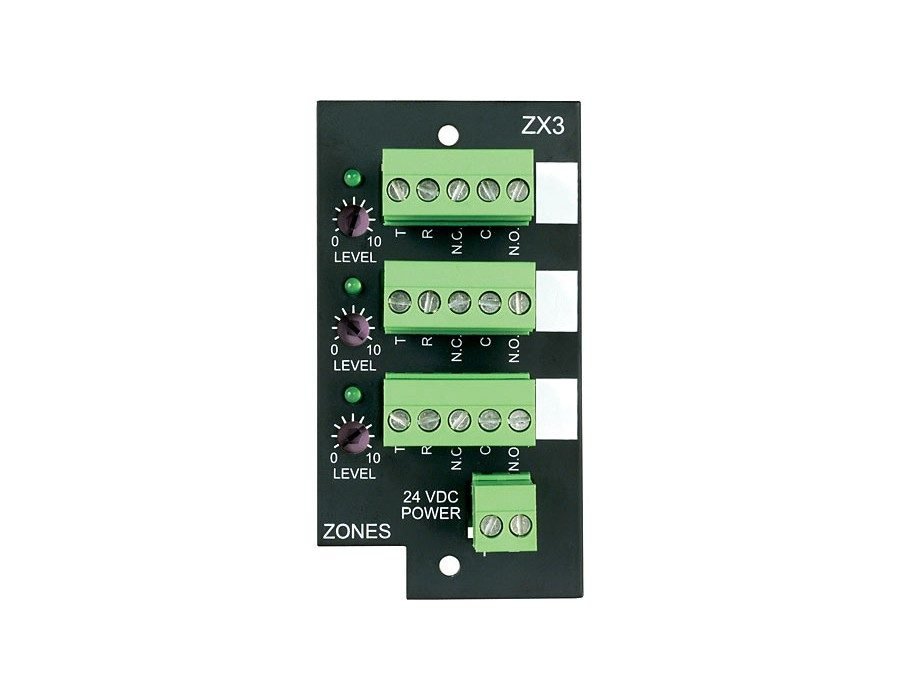

The ZX3 from Bogen is a 3-Zone Expansion Module for the UT1312. This module provides for 3 additional paging zones. Each ZX3 can provide audio output for up to 150 self-amplified speakers per zone. The ZX3 provides audio output for up to 150 self-amplified speakers for each of 3 zones.

The UTI312 Zone Paging Contoller provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers.The UTI312 is compatible with all standard analog port types. Each UTI312 comes with a pre-installed ZX3 module for three zones of paging and is expandable up to
12 zones. The UTI312 offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups.The UTI312 also offers flexible dialing.

The UTI312 Zone Paging Controller shall provide multizone paging for one-way applications such as self-amplified speaker systems expandable from 3 to 12 zones using ZX3 modules. It shall also provide up to 24 programmable paging
zone groups. It shall be compatible with all standard analog port types:
loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, and page port voice activation. The UTI312 shall include a pre-installed ZX3 zone module for up to three zones of paging with an audio output with level control per zone. Each output shall provide audio for
150 self-amplified speakers. Each zone shall include zone activity LEDs.
